Lens Mount, Insertable, 50.8 mm Diameter, A-LINE

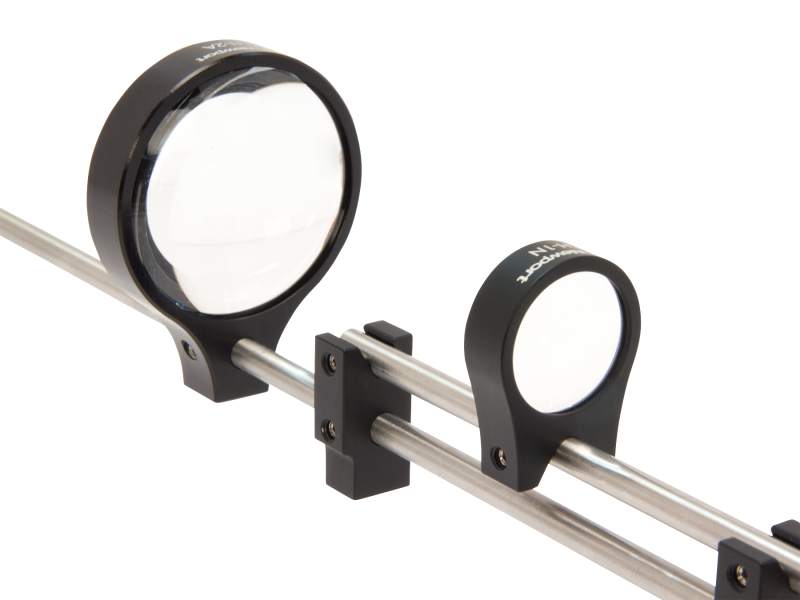

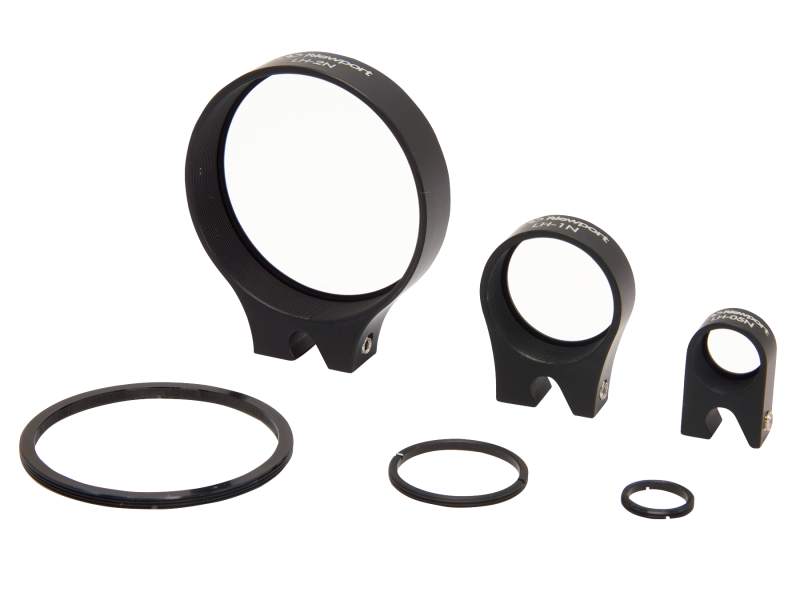

a-line fixed lens mounts with multiple lens mount sizes shown

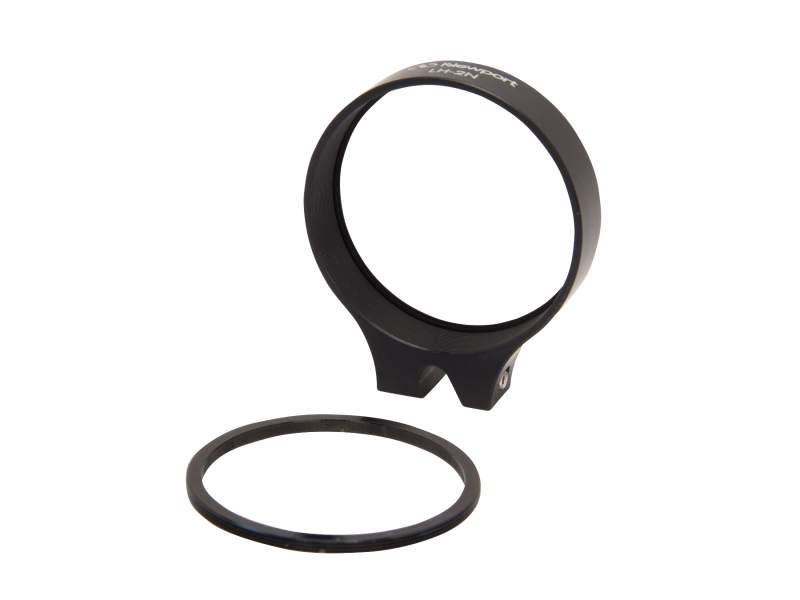

Model: LH-2N

$41

In Stock

Compare

Add to List

Product Series Overview

A-Line™ Insertable Fixed Lens Mounts

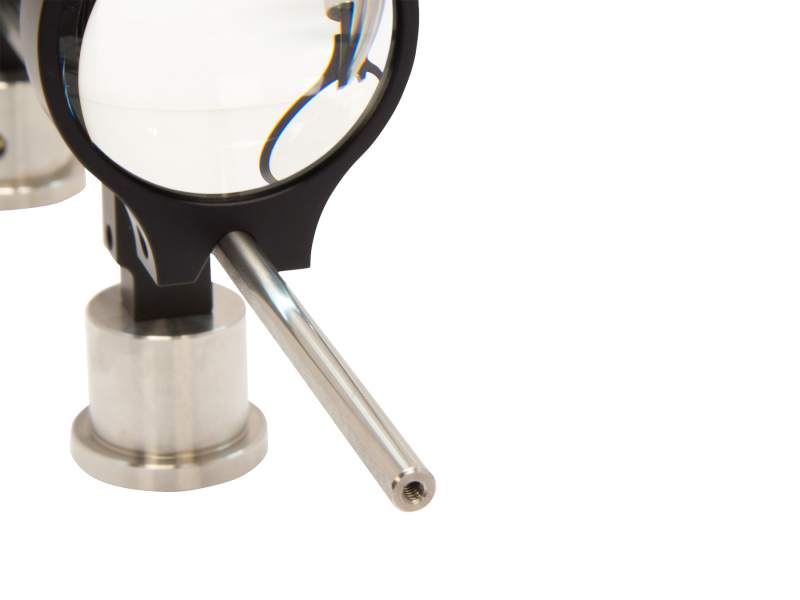

The A-LINE™ LH-2N Lens Mount is an insertable holder for mounting Ø2 in. (50.8 mm) lenses and beamsplitters. The lens mount has a unique angled slot to allow it to be inserted amongst a row of rod-mounted A-Line lens holders. This feature allows the user to easily add and remove lens from the middle of a beam path with out disassembly.

Specifications

Technical Specs

Type

Fixed Lens Mount
Optic Diameter

50.8 mm
Adjustments

Fixed
Edge Thickness (T_e)

13 mm
Optical Axis Height

31.8 mm

Thread Type

Insertable
Optic Retaining Thread

2.035‐40
Clear Aperture

47.5 mm

Type

Fixed Lens Mount
Optic Diameter

50.8 mm
Adjustments

Fixed
Edge Thickness (T_e)

13 mm
Optical Axis Height

31.8 mm

Thread Type

Insertable
Optic Retaining Thread

2.035‐40
Clear Aperture

47.5 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LH-2N-364 (341.8 kB, PDF)

Other

LH-2N RoHS Certificate (278.2 kB, PDF)
LH-2N_RoHS2021.pdf (681.3 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
LP-2A Precision Lens Positioner, 2.0 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	5 Weeks	$1,056
LH-1DB Mirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$23
LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
LH-30M Fixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$19.40
LH-1T Thin Lens Mount, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE	IMPERIAL	In Stock	$20

Compatible

Description	Compatibility	Avail.	Price
LH-GR-1 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 1 in. Length, A-LINE	UNIVERSAL	In Stock	$11.60
LH-GR-4 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE	UNIVERSAL	In Stock	$16.90
LH-GR-8 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE	UNIVERSAL	In Stock	$25
LH-GR-2 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE	UNIVERSAL	In Stock	$13.20
LH-GR-10 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE	UNIVERSAL	In Stock	$29

Accessories

Description	Compatibility	Avail.	Price
SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL	In Stock	$67
LT20-WR Spanner Wrench, 2.0 inch LT Series Lens Tubes	UNIVERSAL	In Stock	$42
LT20-RR Retaining Ring, 47.5 mm ID, 2.035-40 Thread	UNIVERSAL	In Stock	$10.40
