Kinematic Mirror Mount, Insertable, 25.4 mm A-LINE

a-line fixed lens mounts with multiple lens mount sizes shown

Kinematic Mirror Mount, Insertable, 25.4 mm A-LINE

Model: LH-1PY

$128

In Stock

Compare

Add to List

Product Series Overview

A-Line Adjustable Optic Mounts

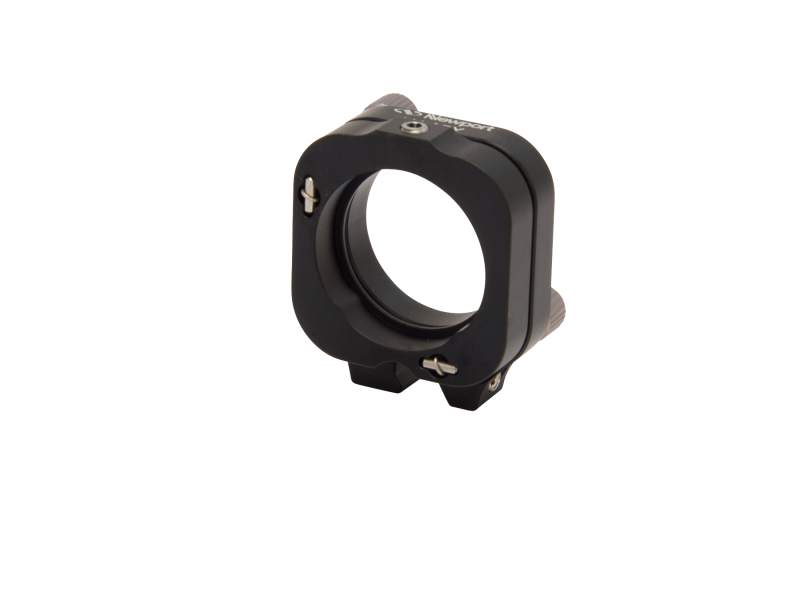

The A-LINE™ LH-1PY is an +/- 3-deg travel adjustable mirror mount for mounting Ø1 in. (25.4 mm) mirrors. The mount has a unique angled slot to allow it to be inserted on to the LH-GR guide rods. This feature allows the user to easily add and remove optics from the middle of a beam path with out disassembly. This mount has special threaded knobs which can be removed with the aid of a 5/64th (2-mm) hex wrench.

Specifications

Technical Specs

Type

Adjustable Mount
Adjustments

θx, θy
Optic Diameter

25.4 mm
Thread Type

Insertable

Optic Retaining Thread

1.035‐40
Clear Aperture

22.9 mm

Type

Adjustable Mount
Adjustments

θx, θy
Optic Diameter

25.4 mm
Thread Type

Insertable

Optic Retaining Thread

1.035‐40
Clear Aperture

22.9 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LH-1PY-361 (419.1 kB, PDF)

Other

LH-1PY RoHS Certificate (277.1 kB, PDF)
LH-1PY_RoHS2021.pdf (678.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SW-OM Spanner Wrench, Compact, 6.35 to 50.8 mm Diameter Optics	UNIVERSAL	In Stock	$67
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38

Similar

Description	Compatibility	Avail.	Price
LH-2A Fixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock	$35
LH-30M Fixed Lens Mount, 30 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33
LCM-1 Lens Mount, Self-Centering, 0.125-1.063 in. Diameter Lenses	IMPERIAL	In Stock	$274
LH-1A Fixed Lens Mount, 1.0 in. (25.4 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$19.40
LH-1DB Mirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$23
LH-1.5A Fixed Lens Mount, 1.5 in. (38.1 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock	$33

Compatible

Description	Compatibility	Avail.	Price
LH-GR-1 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 1 in. Length, A-LINE	UNIVERSAL	In Stock	$11.60
LH-GR-4 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 4 in. Length, A-LINE	UNIVERSAL	In Stock	$16.90
LH-GR-10 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 10 in. Length, A-LINE	UNIVERSAL	In Stock	$29
LH-GR-8 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 8 in. Length, A-LINE	UNIVERSAL	In Stock	$25
LH-GR-2 Keyed Guide Rod, 6 mm Diameter, 4-40 Thd, 2 in. Length, A-LINE	UNIVERSAL	In Stock	$13.20
