Fixed Cube Mount, 1.0 in. (25.4 mm), A-LINE
Fixed Cube Mount, 1.0 in. (25.4 mm), A-LINE
Model: LH-1PM
Product Series Overview

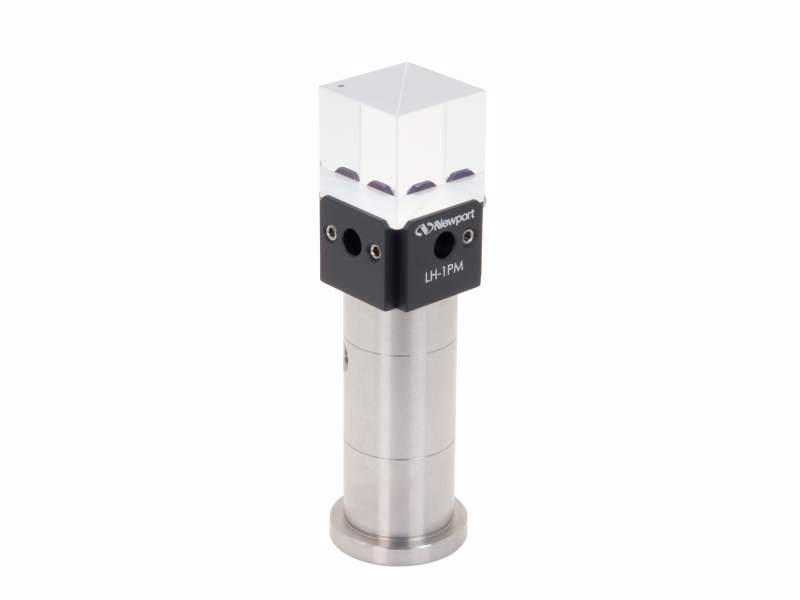

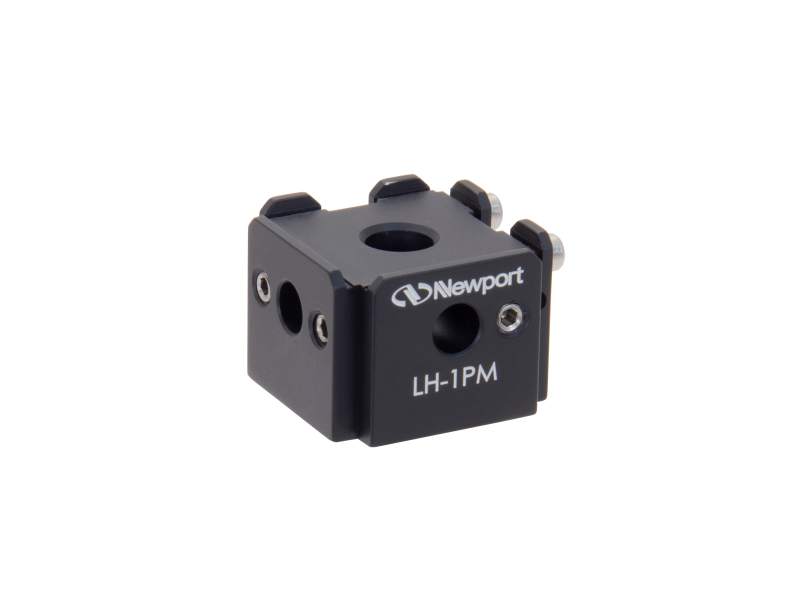

A-Line™ Fixed Cube MountsThe A-LINE™ LH-1PM Fixed Cube Mount is a convenient and economical solution for mounting 1.0 inch (25.4 mm) cube beamsplitters. The mount consists of a novel edge clamping feature to hold the optic firmly, but gently. The holder incorporates an 8-32 (M4) counterbored mounting hole for post mounting on PS, SP, and MSP Series posts. All four sides of the holder also have special 6-mm alignment holes, which can be used with LH or GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.
