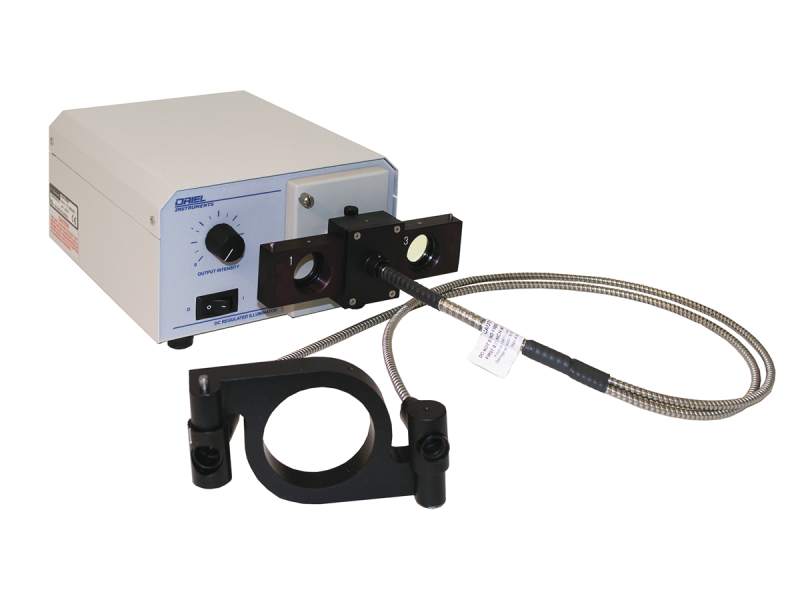

IQE-LIGHT-BIAS Light Biasing System

The IQE-LIGHT-BIAS is a compact source pre-configured for light delivery into a fiber optic light guide and easily integrated onto an IQE system. This kit provides a light source with adjustable intensity levels and the ability to install up to three colored filters. A wide selection of filters are available from Newport to meet a variety of testing needs. These filters are sold separately.

Specifications

Technical Specs

Lamp Type
QTH
Power Requirements
100/240 VAC, 50/60 Hz
Dimensions
7.25" x 9.50" x 4.6"

Weight
< 15.0 lbs.

Lamp Type
QTH
Power Requirements
100/240 VAC, 50/60 Hz
Dimensions
7.25" x 9.50" x 4.6"

Weight
< 15.0 lbs.

Resources & Downloads

Manuals

Oriel IQE Light Biasing System User Manual(808.9 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		IQE-200BQuantum Efficiency Measurement System, 350-1100 nm Wavelength Range	UNIVERSAL
		QUANTX-300Quantum Efficiency Measurement System, 325-1800 nm Wavelength Range	UNIVERSAL

Spare Parts

Description	Compatibility	Price
66088Fiber Optic Illuminator, 150 W QTH	UNIVERSAL	$1,295

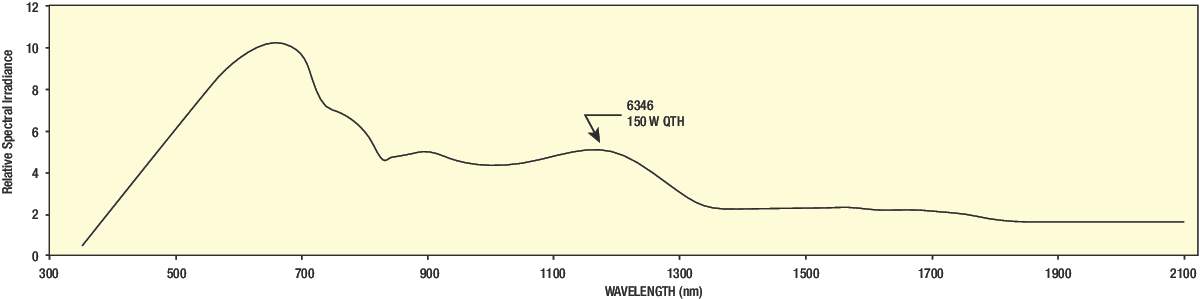

6346Quartz Tungsten Halogen Lamp, 150 W, Integrated Full Reflector	UNIVERSAL	$105
77533Fiber Optic Bundle, Bifurcated, Glass, 0.55 NA	UNIVERSAL	$500
77646Focusing and Imaging Beam Probe, Fiber Bundle, Fused Silica	UNIVERSAL	$270
