Fiber Optic Bundle, Bifurcated, Glass, 0.55 NA
Fiber Optic Bundle, Bifurcated, Glass, 0.55 NA
Model: 77533
Product Series Overview

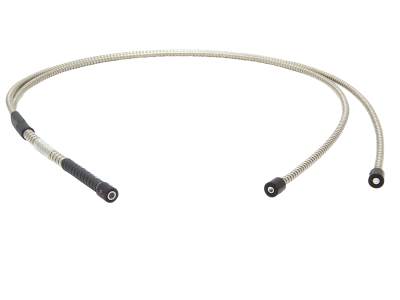

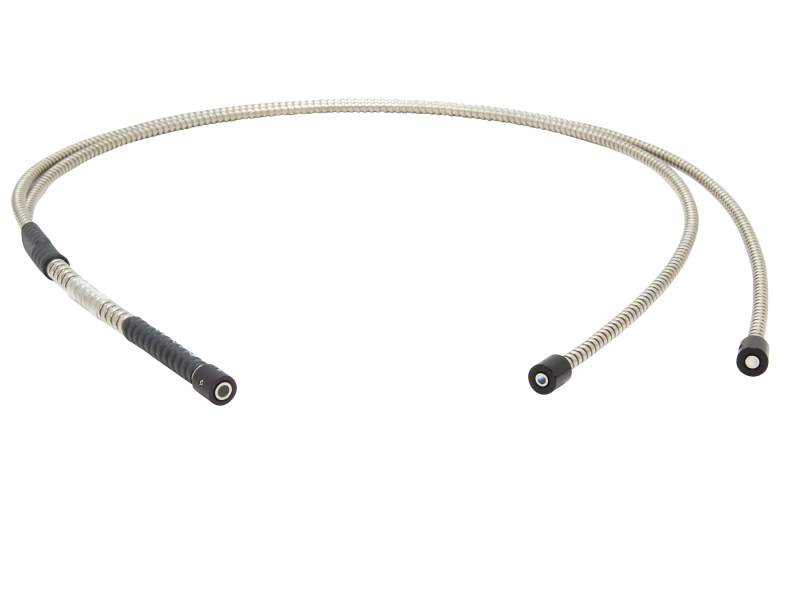

Multi-branch Fiber BundlesThe 77533 Bifurcated Fiber Optic Bundle is comb randomized to produce evenly divided outputs. When light is uniformly focused onto the large unified 0.55 NA input, each leg of a bifurcated bundle receives 43% of the total incident energy (approximately 4% is reflected at the input and output and packing fraction is 0.9). The cable is sheathed in stainless steel and is rated to 107°C [225°F]. Individual fibers are .05 mm diameter [.002 inch]. Minimum bend radius is 50 mm [2 inch] for each leg.
Note: these bundles are sensitive to position changes. Changing the position of the common end or either leg will change the output beam distribution and power. Try to avoid movement of the bundle during a measurement.
Note: these bundles are sensitive to position changes. Changing the position of the common end or either leg will change the output beam distribution and power. Try to avoid movement of the bundle during a measurement.
Specifications
- TypeBifurcated Fiber Bundle
- Core Diameter4.5 mm (common), 3.2 mm (legs)
- Numerical Aperture0.56
- Transmittance Range400 - 2000 nm
- Fiber Length36 in.
- Fiber Connector11 mm Ferrule
- Acceptance Cone, 2a68°
- Fiber MaterialBorosilicate Glass
- Minimum Bend Radius50 mm
- Operating Temperature Rangemax 107˚ C
Resources & Downloads
2D Product Drawings
LS-253Ac(794.1 kB, PDF)
