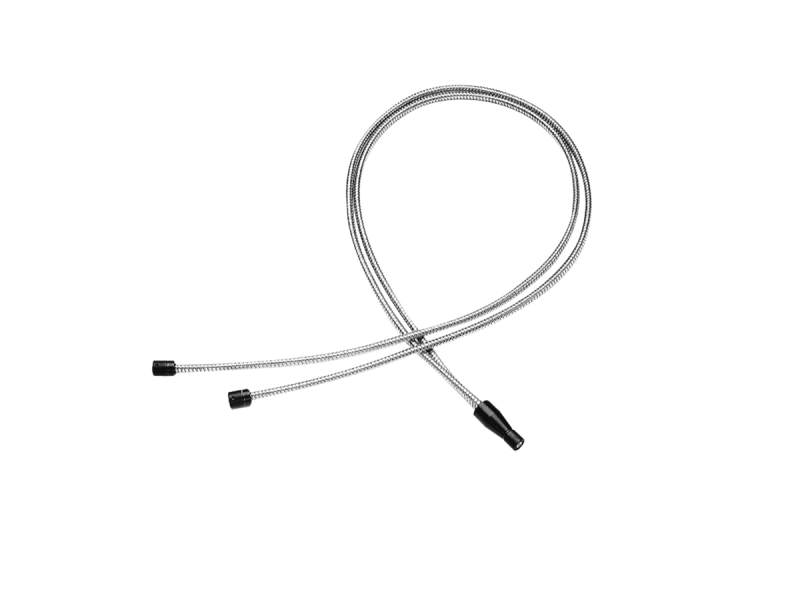

Fiber Optic Bundle, Bifurcated, High Grade Fused Silica, 0.22 NA
Fiber Optic Bundle, Bifurcated, High Grade Fused Silica, 0.22 NA
Model: 77565
Product Series Overview
Multi-branch Fiber BundlesThe 77565 Bifurcated High Grade Fused Silica Fiber Optic Bundle is comb randomized to produce evenly divided outputs. When light is uniformly focused onto the large unified 0.22 NA input, each leg of a bifurcated bundle receives 43% of the total incident energy (approximately 4% is reflected at the input and output and packing fraction is 0.9). Note: these bundles are sensitive to position changes. Changing the position of the common end or either leg will change the output beam distribution and power. Try to avoid movement of the bundle during a measurement.
Specifications
- TypeBifurcated Fiber Bundle
- Core Diameter3.2 mm (common), 2.2 mm (legs)
- Numerical Aperture0.22
- Transmittance Range260 - 2200 nm
- Fiber Length36 in.
- Fiber Connector11 mm Ferrule
- Acceptance Cone, 2a25°
- Fiber MaterialHigh Grade Fused Silica
Resources & Downloads
2D Product Drawings
LS-253Ac(794.1 kB, PDF)
