Strain Relief, Bare Fiber, Delrin Jaws
Strain Relief, Bare Fiber, Delrin Jaws
Model: FPH-SR
Product Series Overview

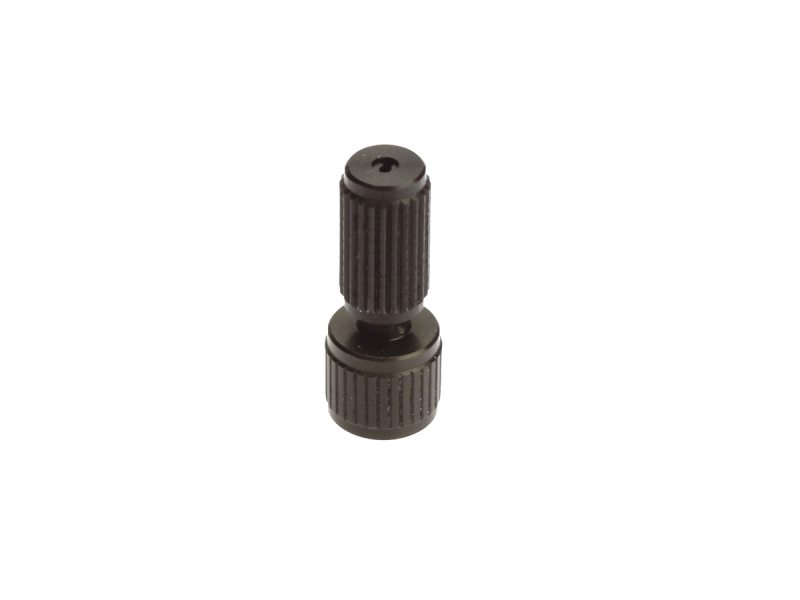

Fiber Chucks and Holders, FPH SeriesThe FPH-SR Bare Fiber Strain Relief prevents inadvertent motion of bare fibers without introducing micro bending. All bare fiber chucks accommodate this lightweight Delrin strain relief. Simply thread the fiber through it, then screw it on the end of the holder. Its Delrin jaws are relieved to fit around the fiber for a gentle grip.
Resources & Downloads
2D Product Drawings
FPH-SR ART-S(60.2 kB, PDF)
Other
FPH-SR_RoHS2021.pdf(680.2 kB, PDF)
