Mounting Bridle, UTR120 to MVN120, TGN120 or UMR12, Qty 4
Mounting Bridle, UTR120 to MVN120, TGN120 or UMR12, Qty 4
Model: BR5
Product Series Overview

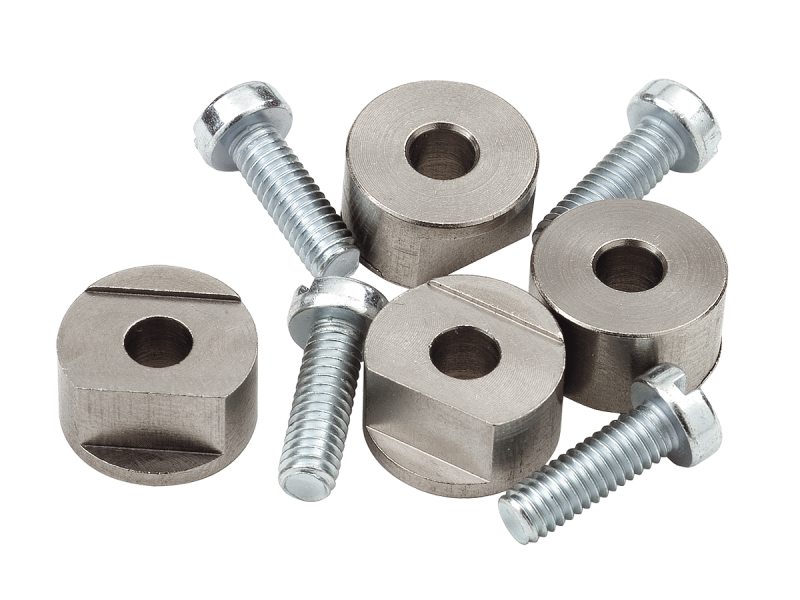

Mounting BridlesThe BR5 Mounting Bridle secures round base components such as a UTR120 or TGN120 Series stage to a similar size linear and rotary positioning devices such as a MVN120 or UMR12. Much like motor clamps, precision machined tabs on the steel bridles insert into a groove around the base of the component to be mounted. In some cases, the base plate of the component to be mounted must be removed for proper usage. BR bridles are sold in sets of four, and have a 0.41 inch height.
Resources & Downloads
2D Product Drawings
BR Series DWG-S(106.5 kB, PDF)
Other
BR5 RoHS Certificate(279 kB, PDF) BR5_RoHS2021.pdf(686 kB, PDF)
