Mounting Bridle, UTR46 to MVN50 or UMR5, 0.26 in. Height, Qty 4
Mounting Bridle, UTR46 to MVN50 or UMR5, 0.26 in. Height, Qty 4
Model: BR3
Product Series Overview

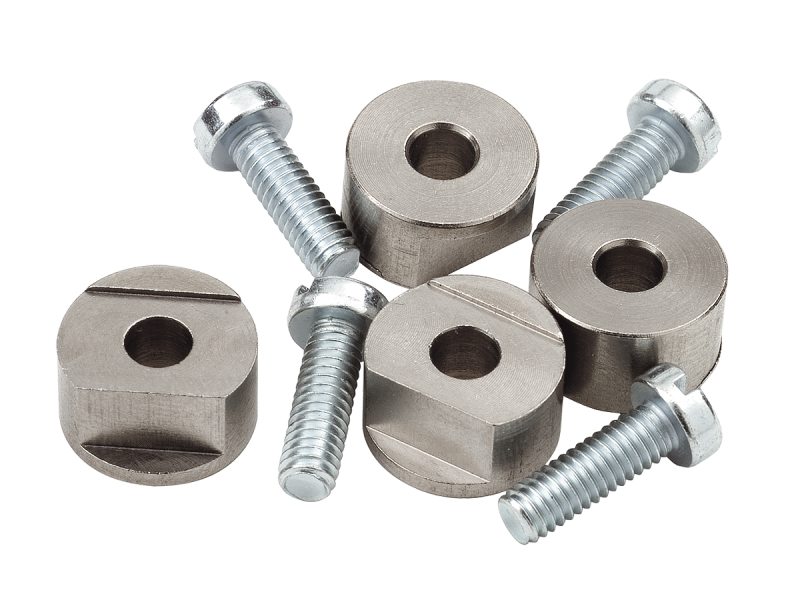

Mounting BridlesThe BR3 Mounting Bridle secures round base components such as a UTR46 stage to a similar size linear and rotary positioning devices such as a MVN50 or UMR5. Much like motor clamps, precision machined tabs on the steel bridles insert into a groove around the base of the component to be mounted. In some cases, the base plate of the component to be mounted must be removed for proper usage. BR bridles are sold in sets of four, and have a 0.26 inch height.
Resources & Downloads
2D Product Drawings
BR Series DWG-S(106.5 kB, PDF)
Other
BR3 RoHS Certificate(278.5 kB, PDF) BR3_RoHS2021.pdf(682.8 kB, PDF)
