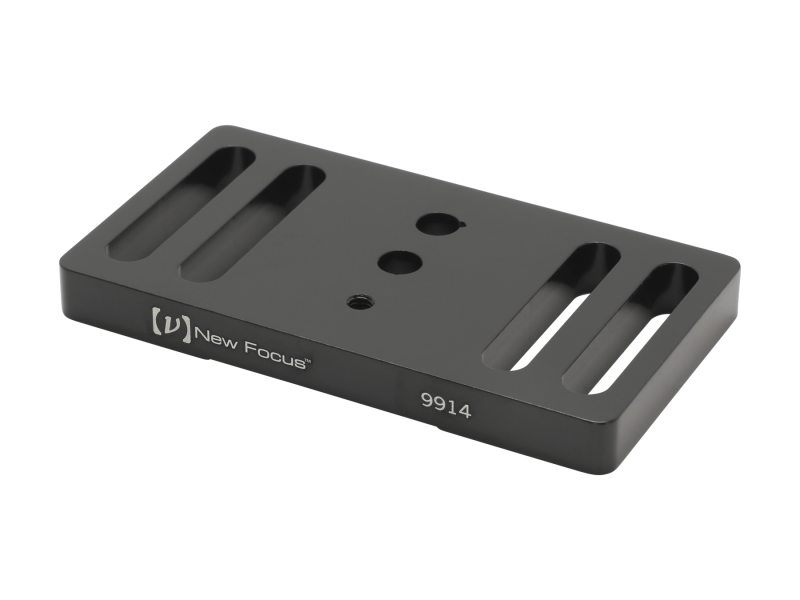

Baseplate, 2.0 in. Width, 1/4-20 (M6) Counterbored

Aluminum Slotted Bases

The 9914 Baseplate makes it easy to reach a mounting hole on a conventional optical table that has 1 in. or 25 mm mounting-hole arrays. The Model 9914 has extra pair of slots.

Specifications

Technical Specs

Type
Slotted Base
Length
92.2 mm
Width
50.8 mm
Height
9.1 mm

Thread Type
8-32 THD and 1/4-20 (M6) CLR
Material
Aluminum

Type
Slotted Base
Length
92.2 mm
Width
50.8 mm
Height
9.1 mm

Thread Type
8-32 THD and 1/4-20 (M6) CLR
Material
Aluminum

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9914c(221.5 kB, PDF)
