Mirror Mount, Classic, Center, 1.0 in., 3 Knobs, 10 Pack

Model: 9807-PK

$1,322

Compare

Product Series Overview

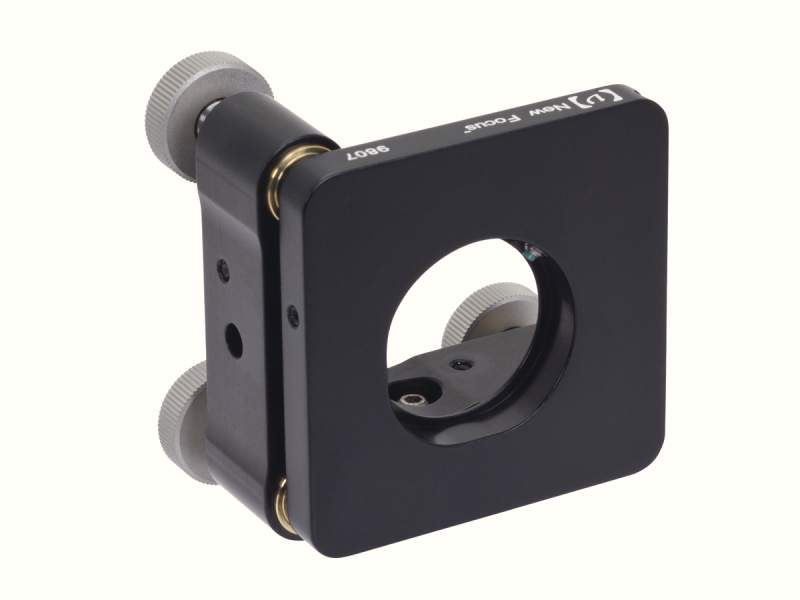

The 9807-PK Classic Center Mirror Mount only looks like a conventional 1.0 inch (25.4 mm) diameter mount. The combination of our proprietary precision knob actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Special Features
10-Pack

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Special Features
10-Pack

Resources & Downloads

2D Product Drawings

9807f-Drawing(94.1 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$75
BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
TA-M6Q20-10Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$43

Similar

Description	Compatibility	Avail.	Price
9807-LMirror Mount, Classic, Center, 1.0 in., 3 Locking Allen-Keys	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$235
9807-CMirror Mount, Classic, Center, 1.0 in., 3 Micrometers	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$536
9807-KMirror Mount, Classic, Center, 1.0 in., 3 Allen-Keys	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$150
M1-PKMirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators, 10 Pack	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$416
