  7. M1-PK

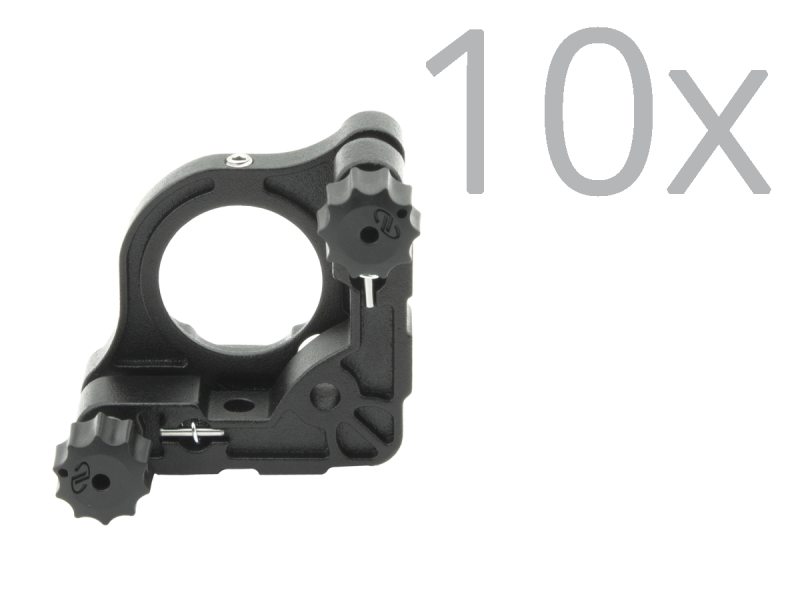

Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators, 10 Pack

M Series Standard Mirror Mounts

Specifications

  • Mechanism
    Kinematic
  • Optic Diameter
    25.4 mm
  • Number of Actuators
    2
  • Actuator Drive
    Knob
  • Actuator Locks
    No
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    3.8 arc sec
  • Angular Range
    ±4°
  • Optic Loading
    Front
  • Material
    Coated Aluminum
  • Drive Type
    Knob, non-locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    25.4 mm
  • Optic Mounting
    Set Screw
  • Special Features
    10-Pack
undefined
undefined

Resources & Downloads

3D Product Models
2D Product Drawings
Other

Related Products

Frequently Purchased Together

Compare Description Drawings, CAD & Specs Avail. Price
Economy Borofloat 33 Metallic Mirrors10D620ER.2-PKSilver Mirror Pack, Economy, Borofloat, 25.4 mm, λ/10, 480-20,000 nm, Qty 10
$473
Standard Optical Post HoldersVPH-2-POptical Post Holder, Pedestal Base, 2.19 in. Height, 0.5 in. Posts
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$29

Similar

Compare Description Drawings, CAD & Specs Avail. Price
M Series Standard Mirror MountsM1Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators
Contact Us
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$44
ULTIMA® Low Wavefront Distortion Mirror MountsU100-AC2KMirror Mount, ULTIMA®, Center, 1.0 in., 2 Locking Knob Adjustment
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$286
M Series Standard Mirror MountsM2Mirror Mount, Lab Standard, 2.0 in. Diameter, 2 Knob Actuators
Contact Us
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$100

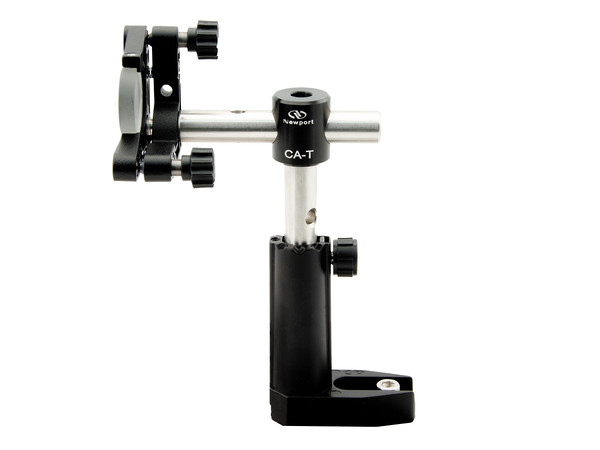

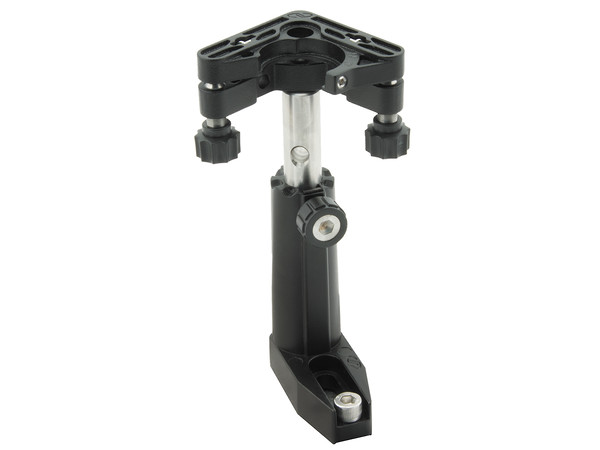

M Series Clear Edge Mirror MountsM1QMirror Mount, Lab Standard, Clear Edge, 1.0 in., 2 Knob Actuators
