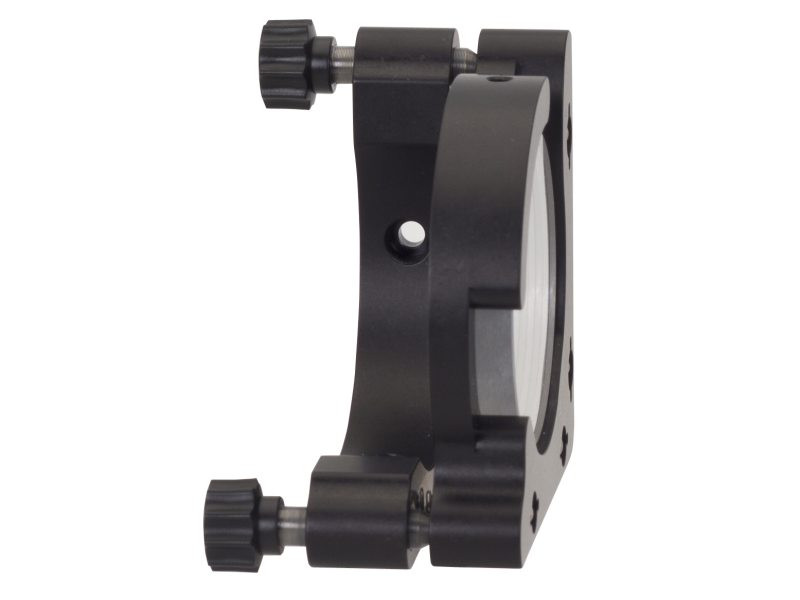

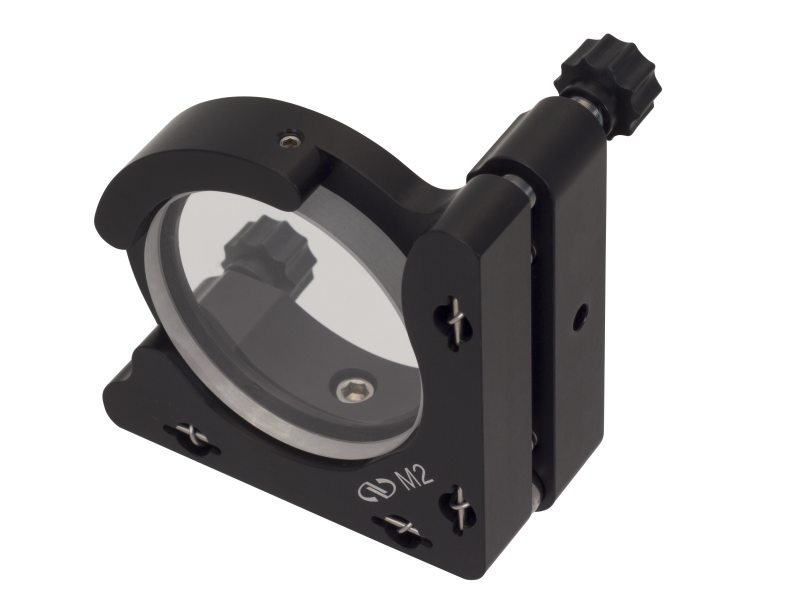

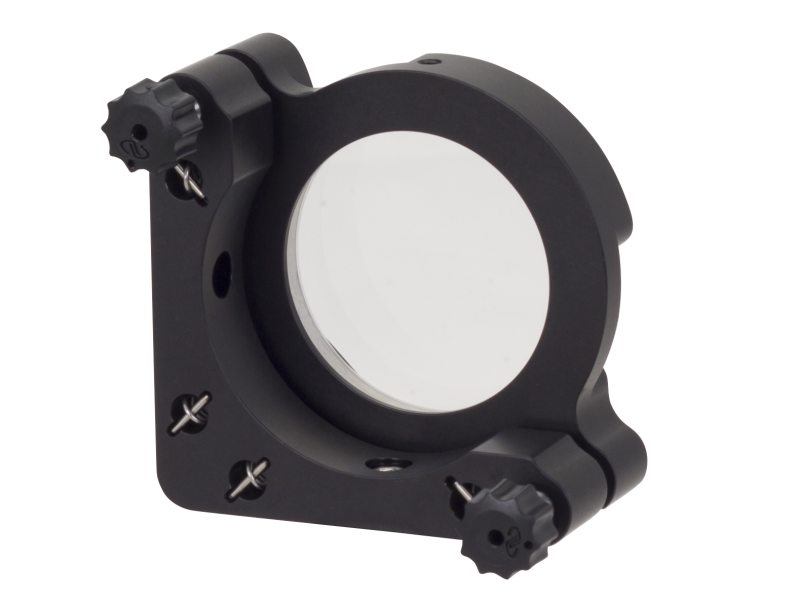

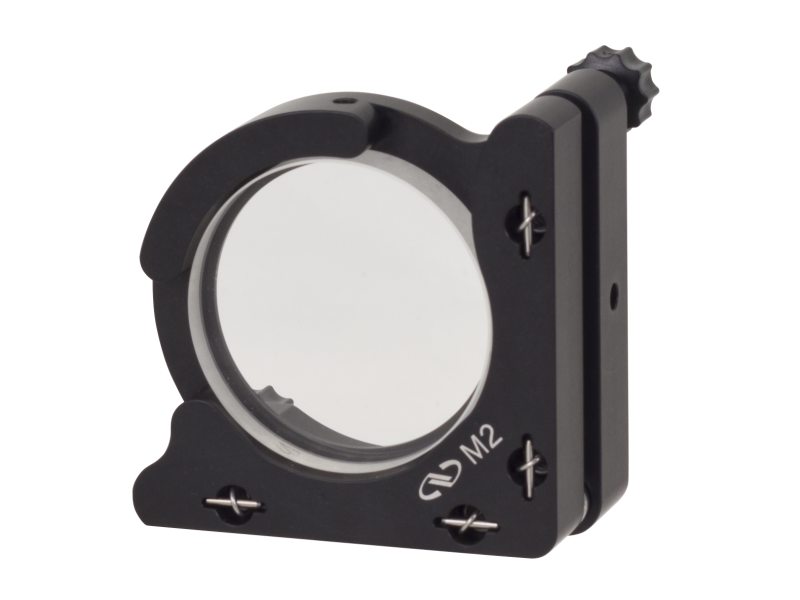

Mirror Mount, Lab Standard, 2.0 in. Diameter, 2 Knob Actuators
Mirror Mount, Lab Standard, 2.0 in. Diameter, 2 Knob Actuators
Model: M2
Product Series Overview
M Series Standard Mirror MountsThe M2 Mirror Mount is ideal for general purpose applications that require a compact, robust, kinematic design at an economical price. The M2 holds 2 inch (50.8 mm) diameter optics. UPA-series adaptors allow other various sizes and types of optics to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.
Specifications
- TypeStandard
- MechanismKinematic
- Optic Diameter50.8 mm
- Number of Actuators2
- Actuator DriveKnob
- Actuator LocksNo
- Adjustment Screw Thread100 TPI
- θx, θy
- 2.4 arc sec
- Angular Range±3°
- Optic LoadingFront
- MaterialAluminum
- Knob, non-locking
- Thread Type8-32 (M4) CLR
- Optical Axis Height38.1 mm
- Optic MountingSet Screw
- Weight166 g
Resources & Downloads
Other
M2 RoHS Certificate(278.4 kB, PDF) M2_RoHS2021.pdf(681.7 kB, PDF)
