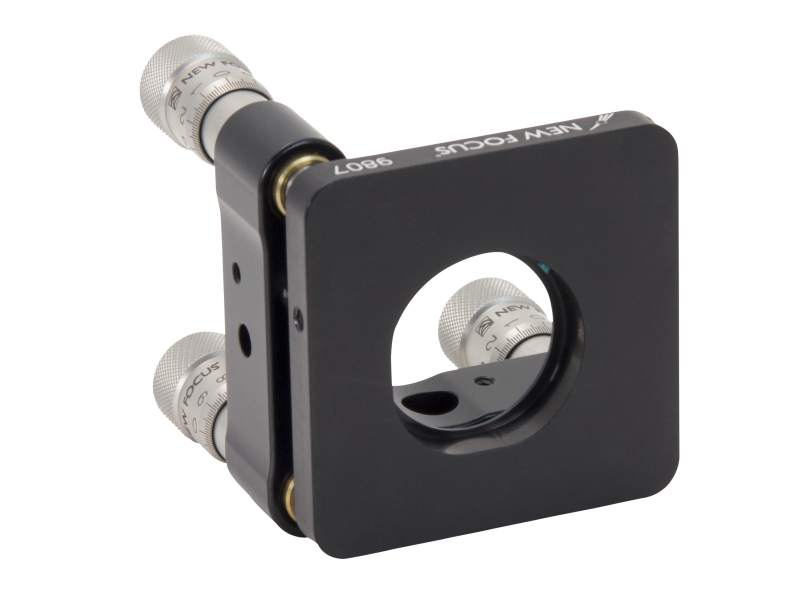

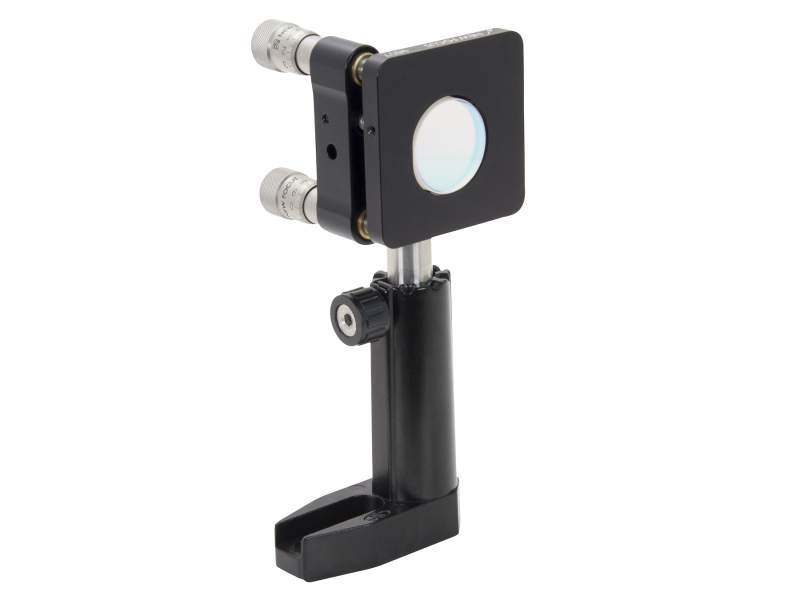

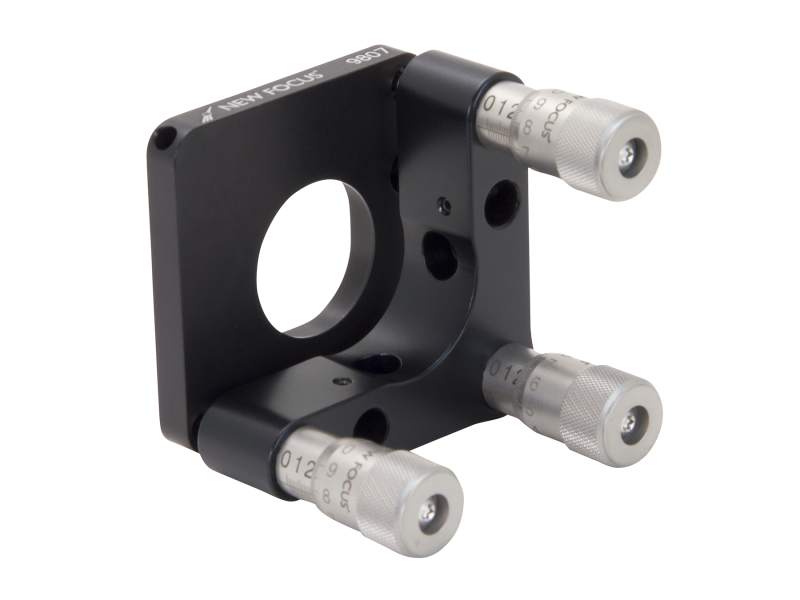

Mirror Mount, Classic, Center, 1.0 in., 3 Micrometers

The 9807-C Classic Center Mirror Mount only looks like a conventional 1.0 inch (25.4 mm) diameter mount. The combination of our precision micrometers, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Micrometer
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Actuator Orientation
Left-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Micrometer
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
159 g

Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Micrometer
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Actuator Orientation
Left-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Micrometer
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw
Weight
159 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9807f-Drawing(94.1 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$75
BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
TA-M6Q20-10Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$43

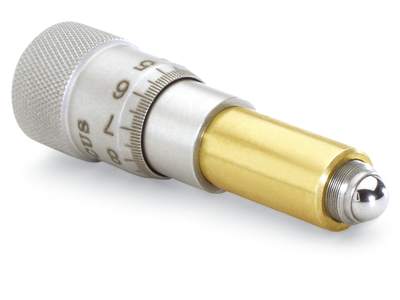

9351Micrometer, 0.25 in. Travel, Unthreaded, 100 TPI High-Resolution	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$154

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9807-KMirror Mount, Classic, Center, 1.0 in., 3 Allen-Keys	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$150

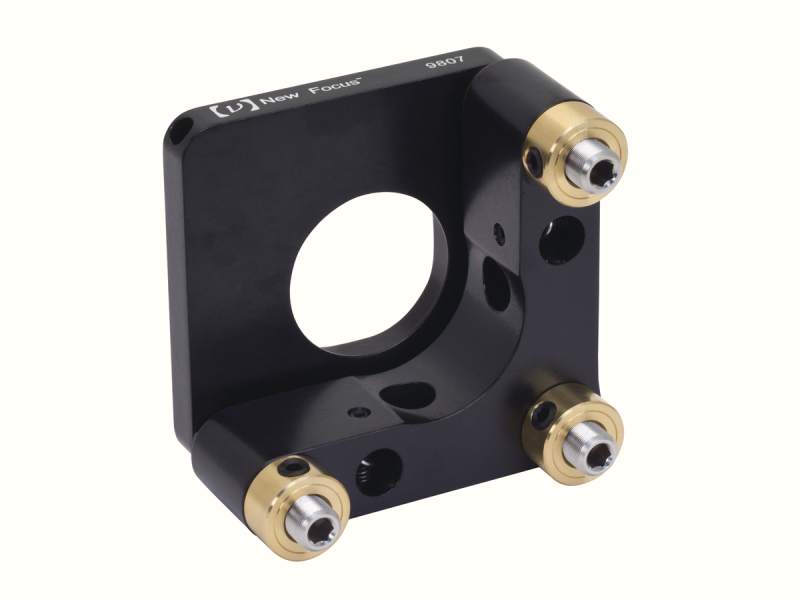

		9807-LMirror Mount, Classic, Center, 1.0 in., 3 Locking Allen-Keys	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$235
