Mirror Mount, Pint-Sized, 0.5 in. Diameter, 2 Allen-Key Top Adjust

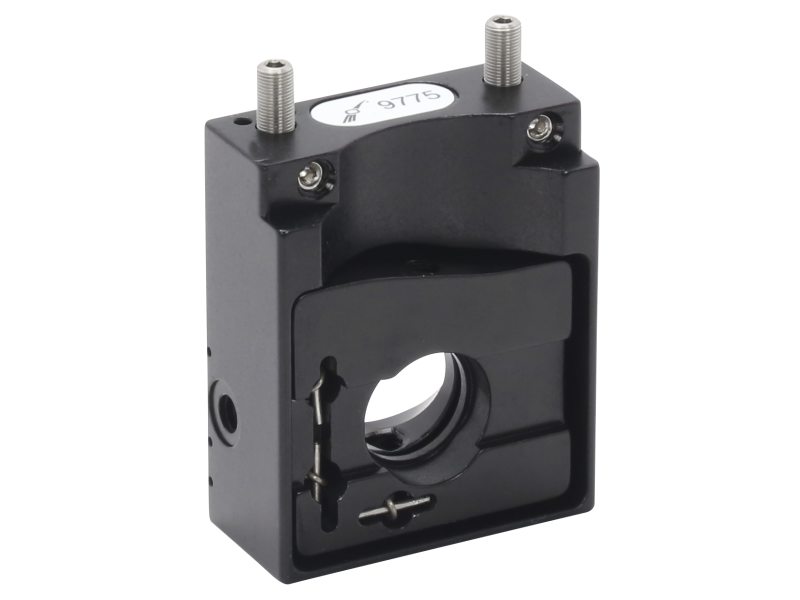

The 9775-K Pint Sized Top Actuated Mirror Mount holds 0.5 in. (12.7 mm) diameter optics, and is ideal for use in compact spaces. It gives you easy access to both tip and tilt adjustments from the Allen-keys on top without worrying about blocking the beam. Top and side mounting schemes are compatible with post and pedestal mounting systems. Relieved bases and thick frames ensure stability, while standard beam heights allow for easy integration into your system. Built-in locks and stiff springs increase long-term stability. 8-32 threaded mounting hole.
Specifications
- MechanismKinematic
- Optic Diameter12.7 mm
- Number of Actuators2
- Actuator DriveAllen-Key
- Actuator LocksYes
- Adjustment Screw Thread80 TPI
- θx, θy
- 4.3 arc sec
- Angular Range±4°
- Actuator OrientationTop Adjust
- Optic LoadingFront
- MaterialAluminum
- Allen-Key, locking
- Thread Type8-32
- Optical Axis Height12.7 mm
- Optic MountingSet Screw
- Weight41 g
Resources & Downloads
2D Product Drawings
9775c-Drawing(272.3 kB, PDF)
