VIS Dielectric Mirror, 1.0 in. Diameter, 450-700 nm

Standard Borofloat 33 Dielectric Mirrors

The 5101 VIS Dielectric Mirror is designed for use with most gas lasers and dye lasers. This 1.0 inch (25.4 mm) diameter mirror has more than 99% reflectivity for 450 to 700 nm visible laser light of any polarization with any angle of incidence from 0° to 45°.

Specifications

Technical Specs

Wavelength Region
VIS
Wavelength Range
450-700 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
8.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter

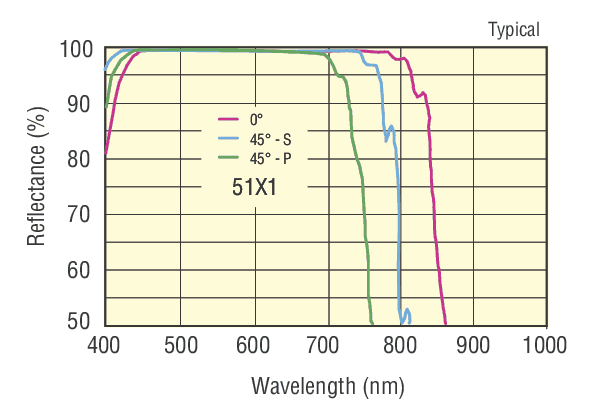

Reflectivity
R>99%, 450-700 nm
Damage Threshold
500 kW/cm² (cw), 1 J/cm² (10-ns pulse)

Wavelength Region
VIS
Wavelength Range
450-700 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
8.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Reflectivity
R>99%, 450-700 nm
Damage Threshold
500 kW/cm² (cw), 1 J/cm² (10-ns pulse)
