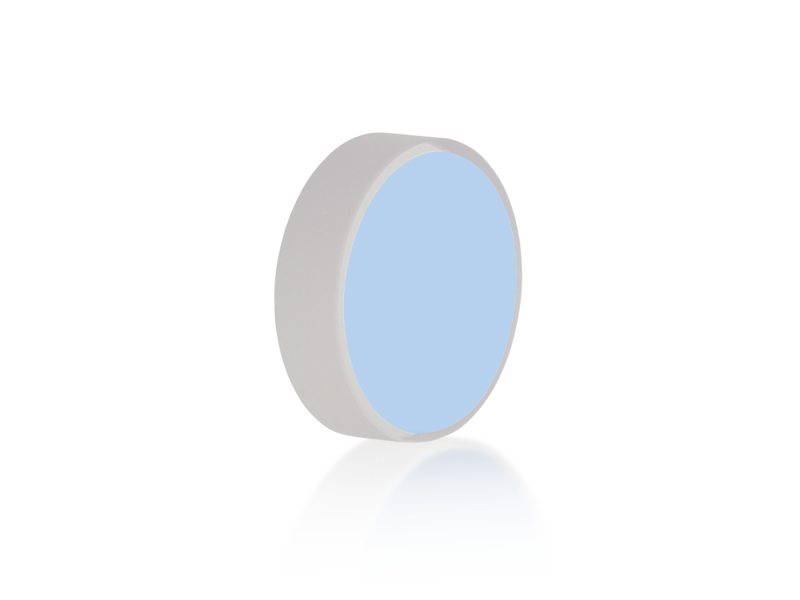

NIR Dielectric Mirror, 1.0 in. Diameter, 700-900 nm

Standard Borofloat 33 Dielectric Mirrors

The 5102 NIR Dielectric Mirror has more than 99% reflectivity for most near-IR lasers operating from 700 to 900 nm. This 1.0 inch (25.4 mm) diameter mirror has relatively high reflectivity at 633 nm, offering compatibility with HeNe alignment lasers.

Specifications

Technical Specs

Wavelength Region
NIR
Wavelength Range
700-900 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
8.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Reflectivity
R>99%, 700-900 nm
Damage Threshold
500 kW/cm² (cw), 10 J/cm² (28-ns pulse)

Wavelength Region
NIR
Wavelength Range
700-900 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
8.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Reflectivity
R>99%, 700-900 nm
Damage Threshold
500 kW/cm² (cw), 10 J/cm² (28-ns pulse)
