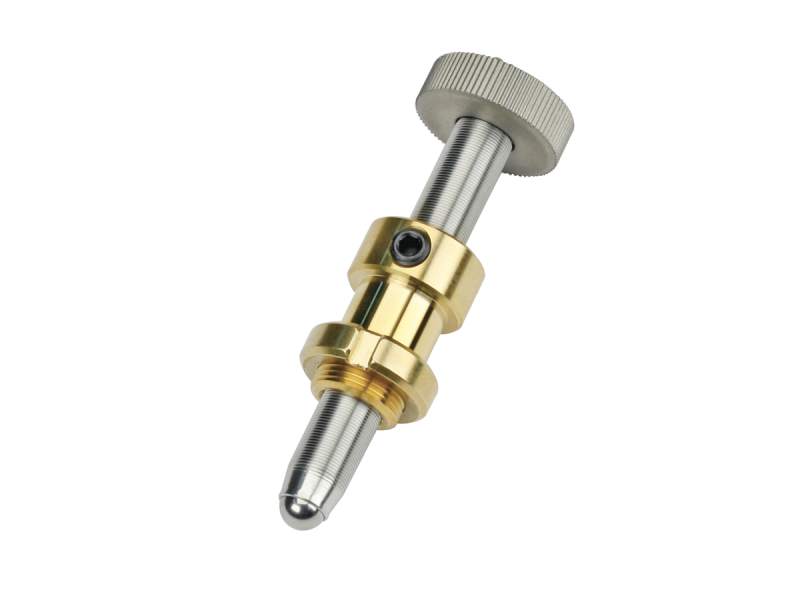

Adjustment Screw, Knob, Braked, 25.4 mm Travel, Ball Tip, 1/4-100
The 1.0 inch (25.4 mm) 9369 Adjustment Screw provides smooth, wobble-free adjustment combined with exceptional long-term stability and low susceptibility to thermal variation. It is the same 1/4-100 precision screw used in our optic mounts and allows you to build your own mounts or positioners. In addition to a travel of 1.0 inch (25.4 mm); the screw has a ball tip, braked brass bushing, and is knob adjusted.
Resources & Downloads
2D Product Drawings
99-930x(95.1 kB, PDF)
Other
910200-04 RoHS Certificate(291.9 kB, PDF)
Related Products
Customers Who Bought This Item Also Bought
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SM-25Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9064-XLinear Stage, Triple Divide, 1.1 in. Travel, 8-32 and 1/4-20 Threads | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

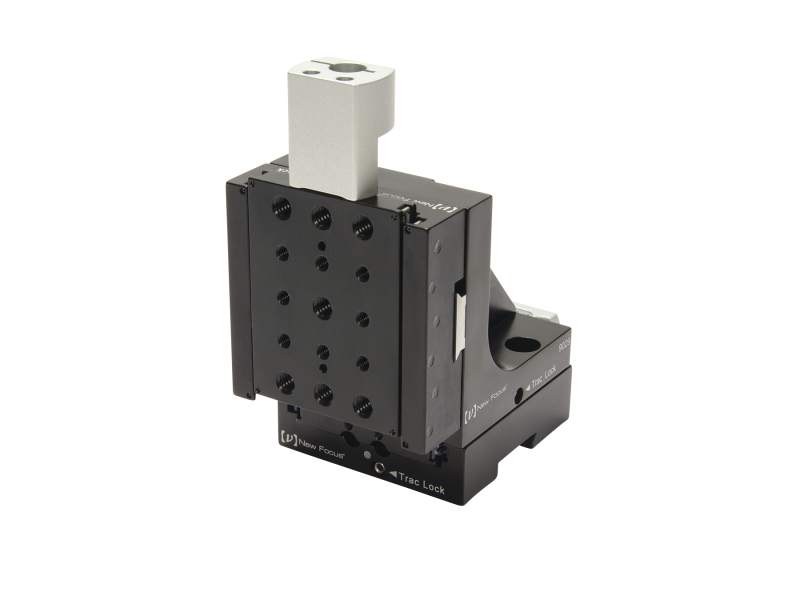

 | 9064-XZXZ Linear Stage, Triple Divide, 1.1 in. Travel, 8-32 and 1/4-20 Threads | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
