Linear Stage, Triple Divide, 28 mm Travel, M4 and M6 Threads

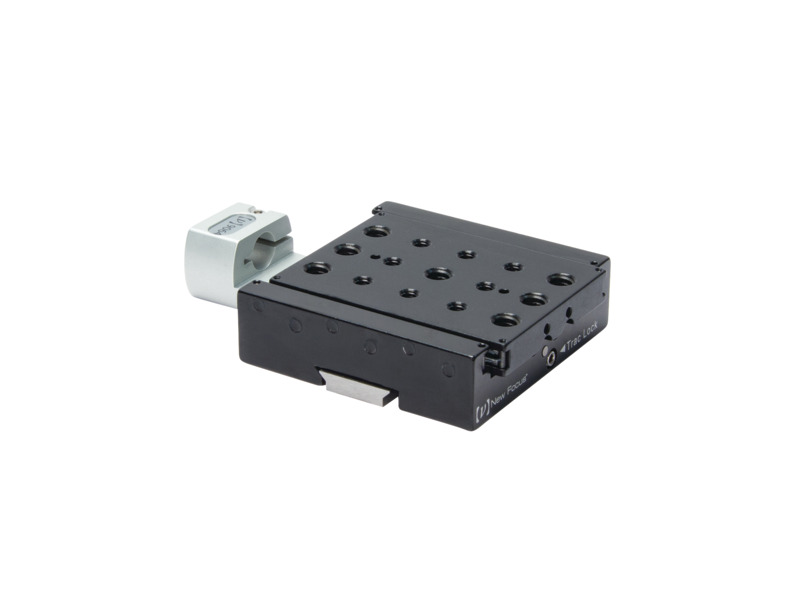

The 9064-X-M Triple Divide X Axis Translation Stage in combination with its included e⋅z⋅Trac system provides a low profile for stability and a small footprint. For this X-stage, coarse Y adjustment provided by our unique e⋅z⋅Trac system lets you position your optic exactly where you need it. You can easily convert back and forth between the X and Z configurations. Combine this stage with any of the accessories on to build the translation system you want. NOTE: Actuators are not included with these stages. We recommend using our 9302 Adjustment Screws or our SM-25 micrometers. For even more precise control, try our 8302 Picomotor™ actuator.
Resources & Downloads
Manuals
9064 Translation Stages User Manual(1.4 MB, PDF)
2D Product Drawings
9064xb-Drawing(122.6 kB, PDF) 20029064-Xsm(107.8 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 422-1SMiniature Linear Stage, Ball Bearing, 1.0 in. Travel, 8-32 and 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

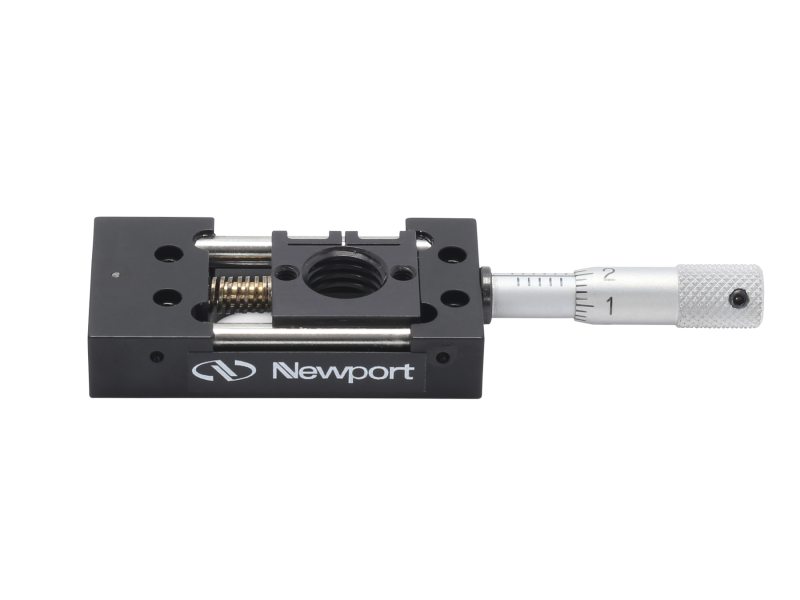

 | MS-200M-XManual Linear Stage, Miniature, Micrometer, 0.2 in. Travel, 0.75 lb. Load | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

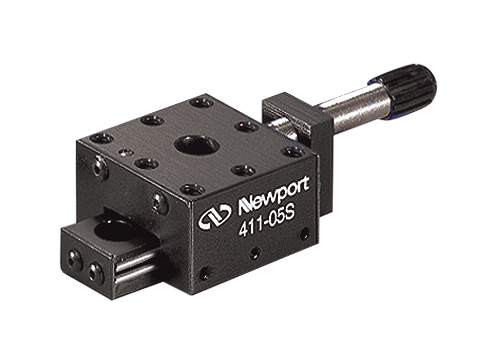

 | 411-05SMiniature Linear Stage, Ball Bearing, 0.5 in. Travel, 8-32 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
