Optical Power Detector, Silicon, 400-1100 nm, OD1 Attenuator
The 918D-SL-OD1R Silicon Photodetector is designed for low optical power measurements and now features a new design with a diffuser for ISO 17025 compliance. It includes integrated calibration-data storage, built-in OD1 attenuation filter with automatic On/Off detection, temperature sensing electronics for temperature drift compensation and is compatible with DB15 based Newport Power Meters. The Silicon (Si) photodetector is NIST-traceable calibrated for 400-1100 nm optical power measurements. It includes a certificate of calibration with calibration curves and data for both attenuator on and off conditions.
Specifications
- Detector TypePost Mounted
- Detector InputFree Space
- Detector MaterialSilicon
- Spectral Range400 - 1100 nm
- Sensor SizeØ11.3 mm
- AttenuatorOD1, Built-in

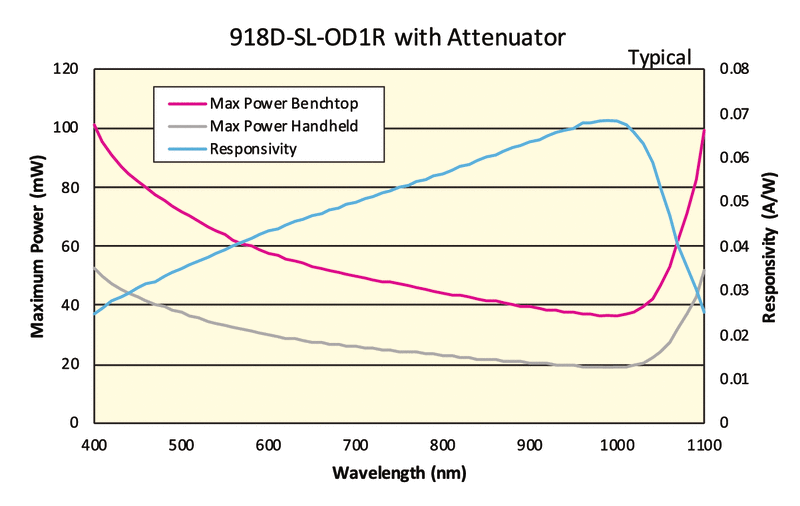

- Maximum Measurable Power20 mW
- Minimum Measurable Power20 pW
- Maximum Measurable Power Benchtop Meter20 mW
- Maximum Measurable Power Handheld Meter2 W
- Maximum Measurable Power Without Attenuator4 mW
- Maximum Power Density10 W/cm²
- Maximum Power Density without Attenuator3 W/cm²
- Maximum Pulse Energy Without Attenuator5 nJ
- Maximum Pulse Energy50 nJ
- Calibration ModuleDB15 Connector Pigtail
- Calibration Uncertainty1.65% (400-430 nm)
1.1% (430-1000 nm)
4.3% (1035-1065 nm) - Linearity±1 %
- Uniformity±2 %
- Rise Time≤2 µs
- Clear ApertureØ10.3 mm
- Connector TypeDB15
- Cable Length2 m
- Operating Temperature Range5 to 50°C
- Operating Humidity<70% RH
- RoHSCompliant
