Virtual Power Meter, RS232
The 845-PE-RS, virtual meter provides easy integration into automation systems (e.g. PLC) using RS-232 in their communication infrastructure. It also allows turning the customer’s PC or laptop into a full-fledged Newport laser power/energy meter.

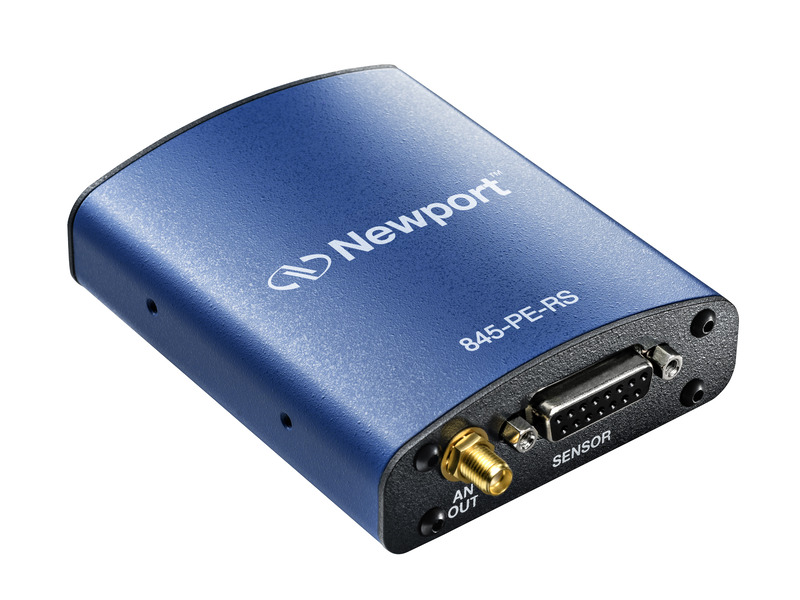

The sensor is connected to the 845-PE-RS which sends the measurement results to the PLC or the destination computer. The 845-PE-RS has an analog output which provides an output voltage proportional to the power/energy measured.

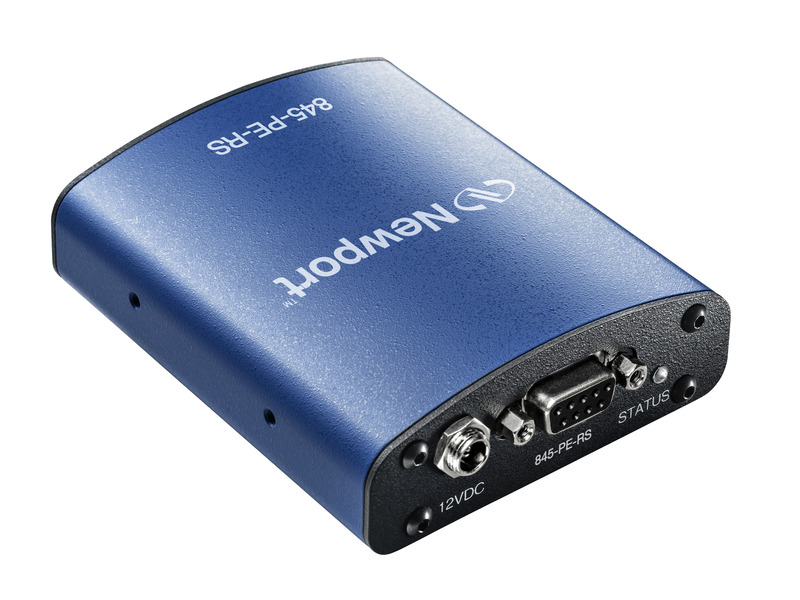

When using the 845-PE-RS with a PC/Laptop, just install the PMManager software, plug the sensor into the 845-PE-RS module and connect the 845-PE-RS with a standard RS-232 cable to a PC serial port or USB to RS-232 adapter.
You can connect several 845-PE-RS modules to the PC at the same time.
Resources & Downloads
Tutorials
Literature
Understanding Total Measurement Uncertainty(649.3 kB, PDF) 845-PE-RS Datasheet(1.9 MB, PDF)
Technical Notes
Average and Peak Power Calculation(31.9 kB, PDF) A Shortcut for Calculating Power Density(35.2 kB, PDF) Newport User Commands Revision 08(PDF)
Manuals
LMMeasurement COM Object Manual Version 13(580.3 kB, PDF) 845-PE-RS User Notes(84.4 kB, PDF) PMManager User Manual rev 3.90-2(5.3 MB, PDF)
2D Product Drawings
845-PE-RS Dimensions(123.3 kB, PDF)
Other
845-PE-RS EU27 Declaration of Conformity(108 kB, PDF)
