Manual Linear Stage, Stainless Steel, Optical Encoder, 25.4 mm, M6

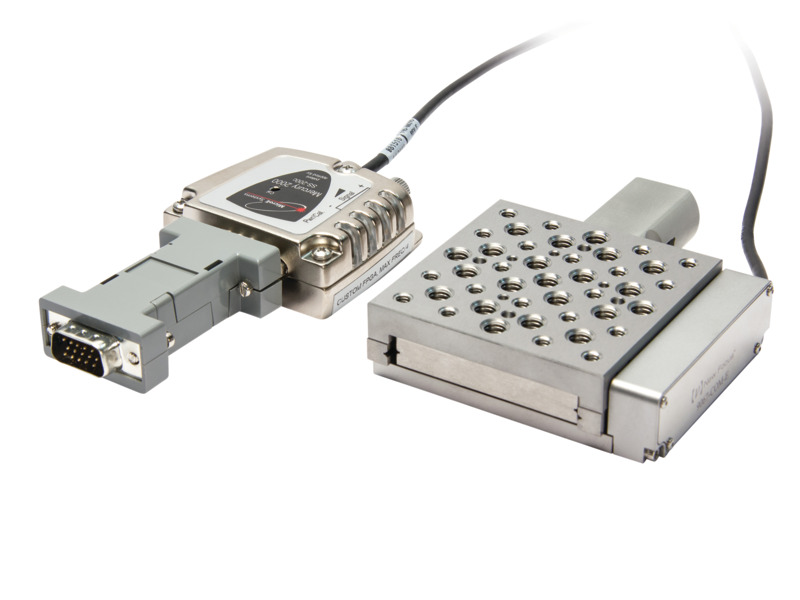

The 9067-COM-E-M Optically Encoded Stainless Steel Crossed-Roller-Bearing Translation Stage allows you to build your own closed-loop Picomotor-actuated stage. This 25.4 mm travel translation stage with integrated encoder can be used with your choice of our many Picomotor actuators, so you'll be able to accurately measure where you are and where you need to be. It is fully compatible with the Model 8743-CL closed-loop Picomotor controller/driver. M4 threaded holes.

Specifications

Technical Specs

Travel Range
25.4 mm
Axes of Travel
X
Resolution
80 nm
Centered Load Capacity
222 N
Vertical Load Capacity
80 N
Bearings
Crossed Roller Bearings
Material
Stainless Steel

On-Axis Accuracy
3 µm
Feedback
Closed Loop
Thread Type
M4 and M6
Platform Size
63.5 x 63.5 mm
Height
22.1 mm

Travel Range
25.4 mm
Axes of Travel
X
Resolution
80 nm
Centered Load Capacity
222 N
Vertical Load Capacity
80 N
Bearings
Crossed Roller Bearings
Material
Stainless Steel

On-Axis Accuracy
3 µm
Feedback
Closed Loop
Thread Type
M4 and M6
Platform Size
63.5 x 63.5 mm
Height
22.1 mm

Resources & Downloads

2D Product Drawings

9067-COM-E(260 kB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)

Manuals

9066-9067-COM-E - Users Guide(1.5 MB, PDF)
