Optically Encoded Stainless-Steel Translation Stages
Optically Encoded Stainless-Steel Translation Stages

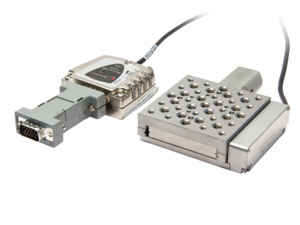

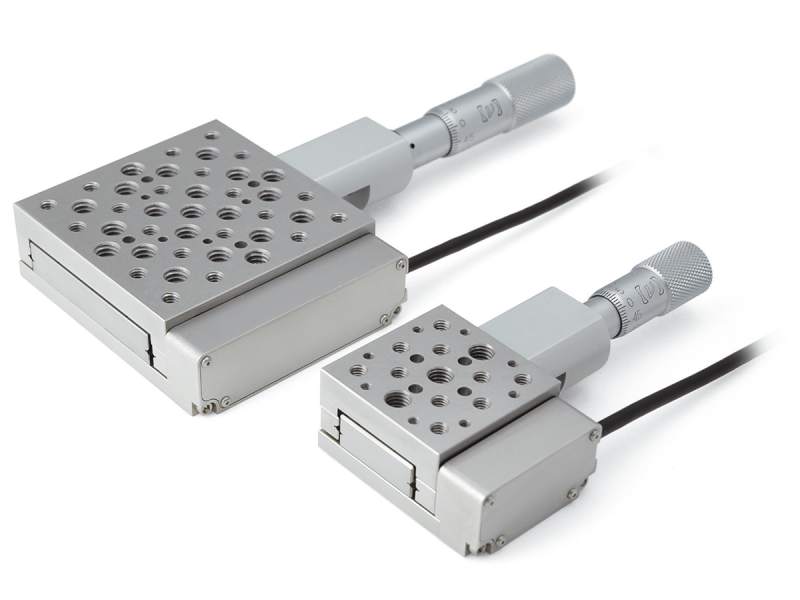

We offer these linear, stainless steel, crossed-roller bearing translation stages with integrated linear optical encoders so that you can build your own closed-loop Picomotor actuated stage. Use these stages with their integrated encoders and your choice of our many Picomotor actuators and you’ll be able to accurately measure where you are and where you need to be.
- Integrated linear optical encoder with 80 nm resolution
- Crossed-roller bearing design for smooth & accurate positioning
- Easily integrated with Picomotor™ actuators See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

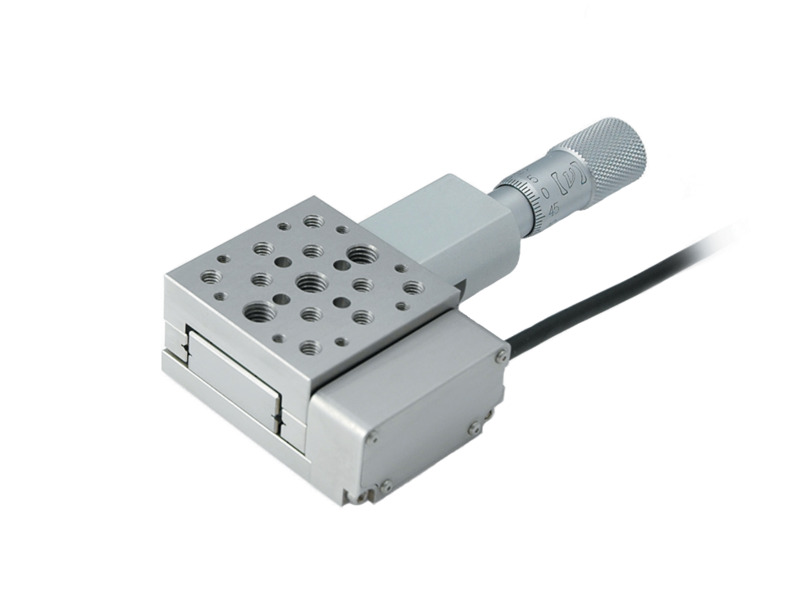

 | 9066-COM-EManual Linear Stage, Stainless Steel, Optical Encoder, 0.5 in., 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9067-COM-EManual Linear Stage, Stainless Steel, Optical Encoder, 1.0 in., 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 9066-COM-E-MManual Linear Stage, Stainless Steel, Optical Encoder, 12.7 mm, M4 | In Stock | ||||
| 9067-COM-E-MManual Linear Stage, Stainless Steel, Optical Encoder, 25.4 mm, M6 |
Specifications
Features
Integrated Linear Encoder for Closed-Loop Operation
These stages feature an integrated linear encoder. Paired with our open-loop Picomotor actuators, you can build your own closed-loop Picomotor actuated stage with 80 nm resolution repeatable step sizes.

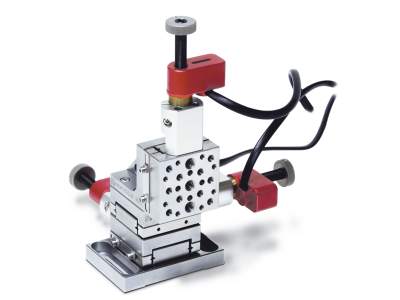

Easily Integrates with Picomotor Actuators and Controllers

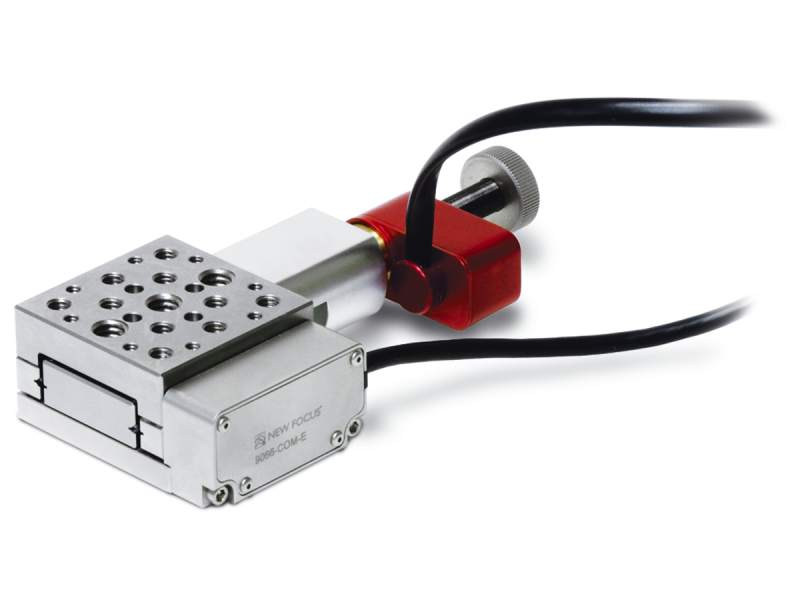

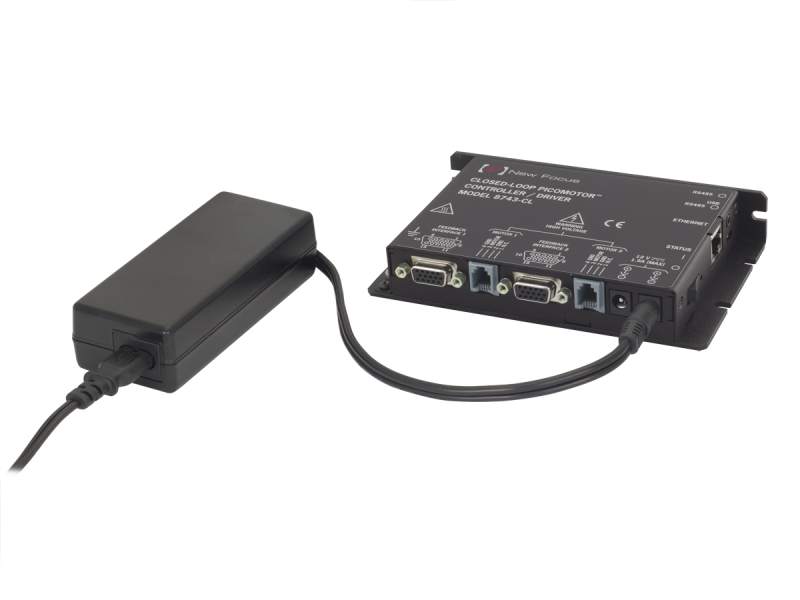

These linear stages have been designed to be fully compatible with our popular Picomotor actuators and the 8743-CL Closed-Loop Picomotor Controller/Driver. For example, combine the 9066-COM-E linear stage with a 8302 Picomotor actuator and 8743-CL Closed-Loop Picomotor controller/driver to create a ready to go closed-loop linear stage.

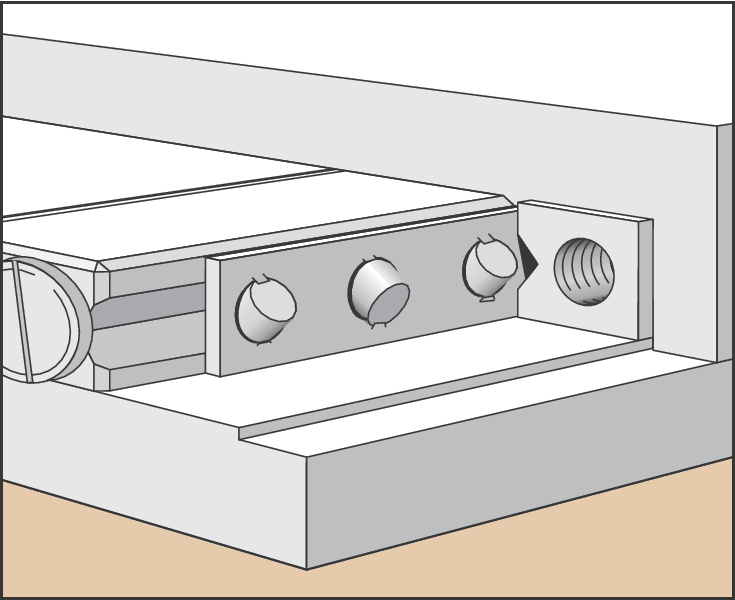

Crossed-Roller Bearing Design for Smooth and Accurate Positioning
To ensure accurate linear travel, the stages use thermally matched, hardened-steel, crossed-roller bearings and high-precision reference surfaces. The result is a line of translation stages that offers an angular deviation of < 150 µrad in any axis and straight-line accuracy better than 3 microns as well as high load capacity and stiffness.
Accessories
Closed Loop Controllers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8743-CLPicomotor Driver Module, Closed-Loop, 2 Channel | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 8743-CL-2-KITMotion Controller Kit, Closed Loop, Two-Axis Picomotor Driver, 8743-CL | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |

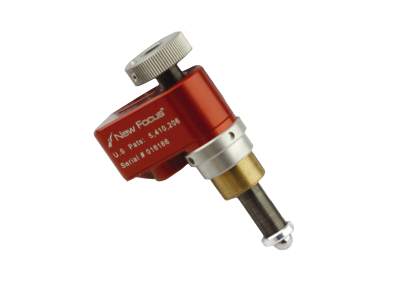

Picomotor Actuators
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8301NFPicomotor Piezo Linear Actuator, 0.5 in. Travel, 30 nm Resolution, 9.5 mm Shank | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

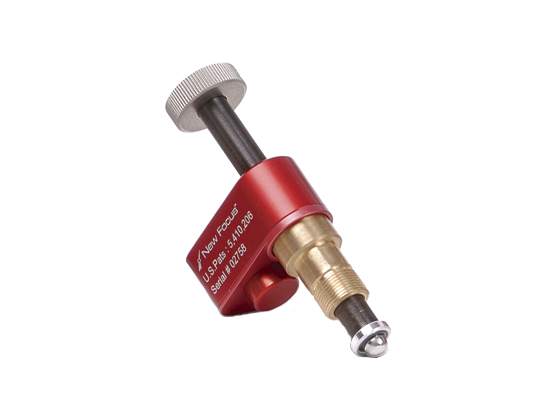

 | 8302Picomotor Piezo Linear Actuator, 1 in. Travel, 30 nm Resolution, 9.5 mm Shank | In Stock | ||||
 | 8303Picomotor Piezo Linear Actuator, 2 in. Travel, 30 nm Resolution, 9.5 mm Shank | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Resources
Manuals
9066-9067-COM-E - Users Guide(1.5 MB, PDF)
