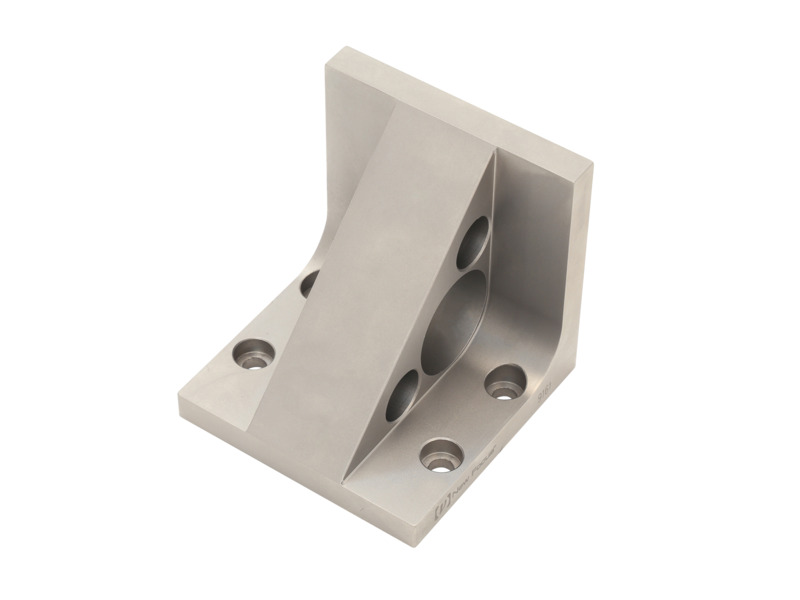

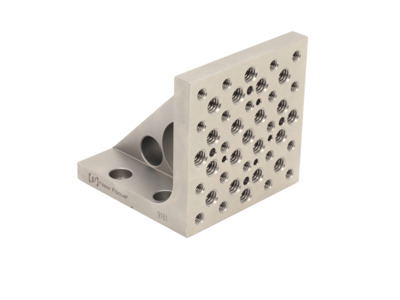

90 Degree Angle Bracket, 9067-M Series Stages, M4 and M6
The 9161-M 90 Degree Angle Bracket is compatible with the Metric 9067 series of crossed-roller-bearing stages to build XZ, and XYZ configurations. M4 and M6 threads.
