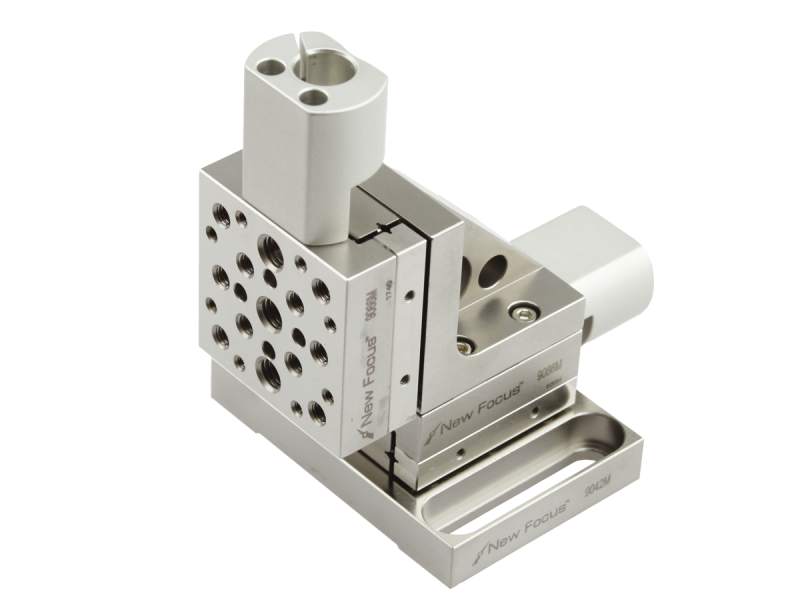

XZ Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum

0.5 in. Travel Vacuum Compatible Crossed Roller Bearing Linear Stages

The 9066-XZ-V Stainless Steel Crossed-Roller Bearing Linear Translation Stage is a 0.5 inch travel linear translation stage that provides low-profile, high-stability, linear translation for systems that do not need vertical adjustment. 9066 series stages feature a generous pattern of eight 4-40. ten 8-32 and three 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8301-V vacuum compatible picomotor actuators for vacuum applications.

Specifications

Technical Specs

Axes of Travel
X, Z
Maximum Stage Travel
12.7 mm
Centered Normal Load Capacity
111 N
Vertical Axial Load Capacity
44.5 N
Angular Deviation
150 µrad
Material
Stainless Steel
Bearings
Crossed-Roller Bearings

Thread Type
4-40, 8-32 and 1/4-20
Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
Recommended Piezo Actuator
8301-V

Axes of Travel
X, Z
Maximum Stage Travel
12.7 mm
Centered Normal Load Capacity
111 N
Vertical Axial Load Capacity
44.5 N
Angular Deviation
150 µrad
Material
Stainless Steel
Bearings
Crossed-Roller Bearings

Thread Type
4-40, 8-32 and 1/4-20
Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
Recommended Piezo Actuator
8301-V

Resources & Downloads

2D Product Drawings

9066-XZ-331(145.3 kB, PDF)
9066-XZa-Drawing.pdf(172.8 kB, PDF)
