Baseplate, 9066 Series Stages, 4-40

Translation Stage Base Plates, 906x Series

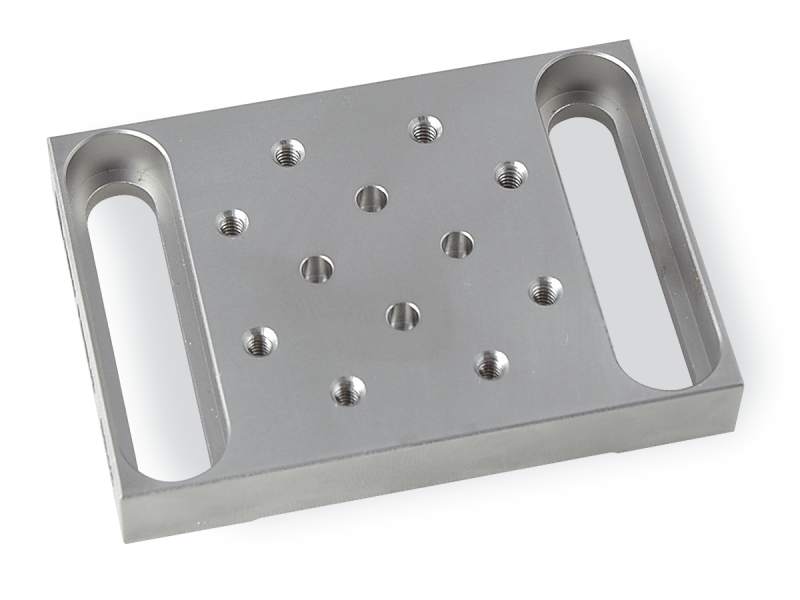

The 9042 Baseplate is used with the Model 9066 series of crossed-roller-bearing stages to create a stage with conventional mounting slots. 4-40 thru holes

Specifications

Technical Specs

Type
Base Plate
Height
9.5 mm
Length
63.5 mm
Width
44.5 mm
Thread Type
4-40

Material
Stainless Steel
Use
9066 Series Stage

Type
Base Plate
Height
9.5 mm
Length
63.5 mm
Width
44.5 mm
Thread Type
4-40

Material
Stainless Steel
Use
9066 Series Stage

Resources & Downloads

2D Product Drawings

9042RC_2005(216.7 kB, PDF)

Other

906632_RoHS2021.pdf(690.2 kB, PDF)
