Manual Linear Stage, Crossed-Roller, 0.5 in., 4-40, 8-32, 1/4-20

0.5 in. Travel High Density Mounting Crossed-Roller Bearing Stages

The 9066-X Stainless Steel Crossed-Roller Translation Stage is a 0.5 inch travel linear translation stage that provides improved stability because the weight of these stainless steel stages is held by the actuator and not the spring. This provides the convenience of being able to use these X-configured stages in the Z configuration. 9066 series stages feature a generous pattern of eight 4-40. ten 8-32 and three 1/4-20 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.

Specifications

Technical Specs

Axes of Travel
X
Maximum Stage Travel
12.7 mm
Centered Normal Load Capacity
111 N
Vertical Axial Load Capacity
44.5 N
Angular Deviation
150 µrad
Material
Stainless Steel
Bearings
Crossed-Roller Bearings

Thread Type
4-40, 8-32 and 1/4-20
Recommended Adjustment Screw
9301
Recommended Vernier Micrometer
SM-13
Recommended Piezo Actuator
8302

Axes of Travel
X
Maximum Stage Travel
12.7 mm
Centered Normal Load Capacity
111 N
Vertical Axial Load Capacity
44.5 N
Angular Deviation
150 µrad
Material
Stainless Steel
Bearings
Crossed-Roller Bearings

Thread Type
4-40, 8-32 and 1/4-20
Recommended Adjustment Screw
9301
Recommended Vernier Micrometer
SM-13
Recommended Piezo Actuator
8302

Resources & Downloads

2D Product Drawings

9066-X(106.6 kB, PDF)
9066-Xa-Drawing.pdf(126.1 kB, PDF)

Related Products

9066 Stage Compatible Accessories

Description	Compatibility	Avail.	Price
9042Baseplate, 9066 Series Stages, 4-40	IMPERIAL	In Stock	$75
904190 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$140
SM-13Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$105
9301Adjustment Screw, Knob, Braked, 12.7 mm Travel, Ball Tip, 1/4-80	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$45
8301NFPicomotor Piezo Linear Actuator, 0.5 in. Travel, 30 nm Resolution, 9.5 mm Shank	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$751

Similar Stages

Description	Compatibility	Avail.	Price
9066-XYZ-RXYZ Linear Stage, Crossed-Roller, 0.5 in. Travel, 4-40, 8-32, 1/4-20	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,757
9067-XManual Linear Stage, Crossed-Roller, 1.0 in., 8-32, 1/4-20	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$750
9066-XYXY Linear Stage, Crossed-Roller, 0.5 in. Travel, 4-40, 8-32, 1/4-20	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,112
9066-COMManual Linear Stage, Crossed-Roller, 0.5 in., 4-40, 8-32, 1/4-20, No Baseplate	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$523
9066-XZXZ Linear Stage, Crossed-Roller, 0.5 in. Travel, 4-40, 8-32, 1/4-20	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,242

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

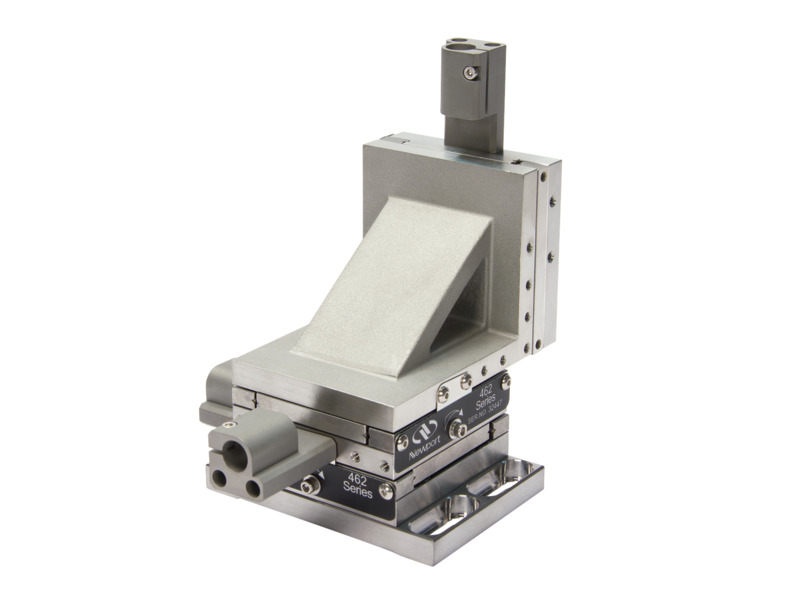

		462-XYZ-MXYZ Linear Stage, ULTRAlign, 25 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL		3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,581
