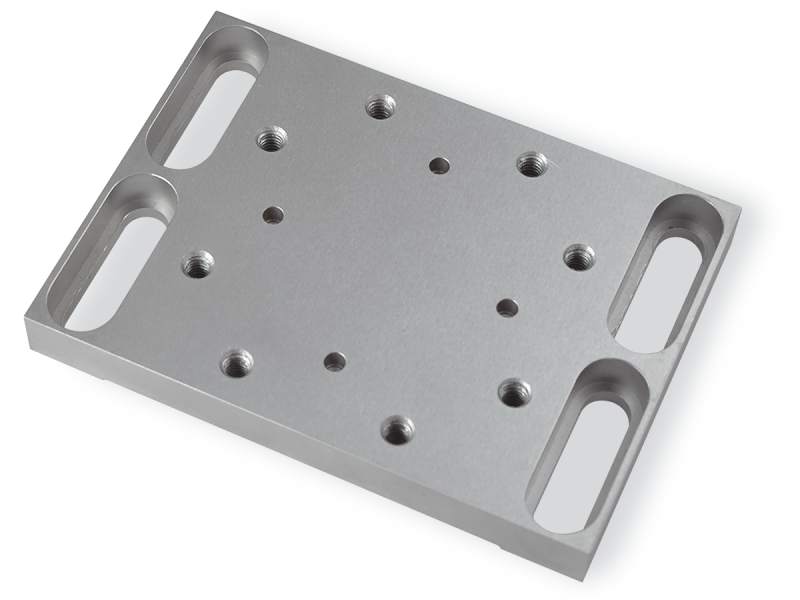

Baseplate, 9066-M Series Stages, M2.5
The 9042-M Baseplate is used with the Model 9066-M series of crossed-roller-bearing stages to create a stage with conventional mounting slots. M2.5 thru holes
Resources & Downloads
2D Product Drawings
9042RC_2005(216.7 kB, PDF)
Other
906696_RoHS2021.pdf(689.5 kB, PDF)
