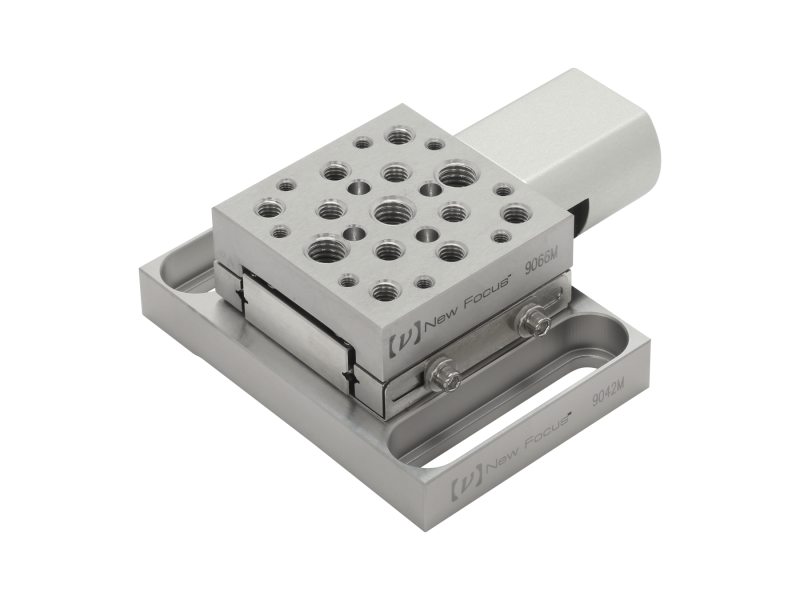

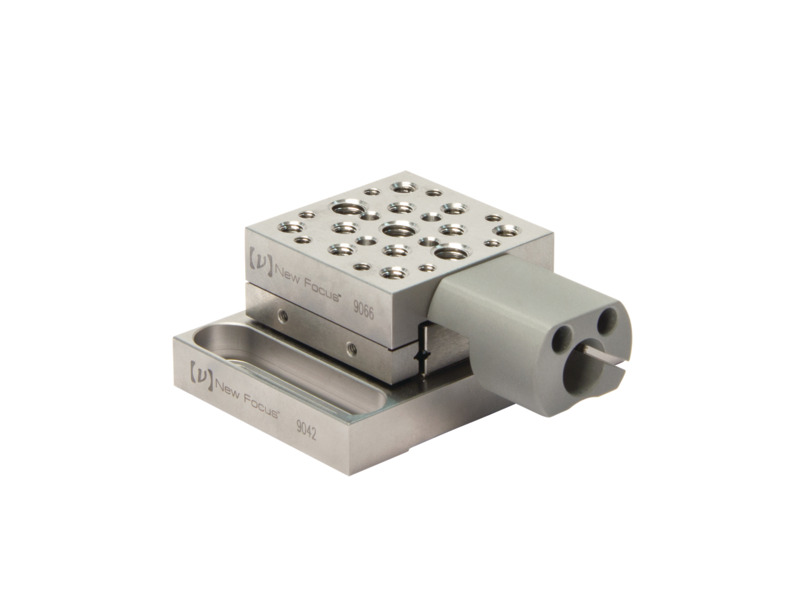

Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum

  • Axes of Travel
    X
  • Maximum Stage Travel
    12.7 mm
  • Centered Normal Load Capacity
    111 N
  • Vertical Axial Load Capacity
    44.5 N
  • Angular Deviation
    150 µrad
  • Material
    Stainless Steel
  • Bearings
    Crossed-Roller Bearings
  • Thread Type
    4-40, 8-32 and 1/4-20
  • Vacuum Compatibility
    10-6 hPa
  • Recommended Piezo Actuator
