FC Bulkhead High Speed Photodetector, 1000-1600 nm Battery Biased InGaAs Detector, 2 GHz

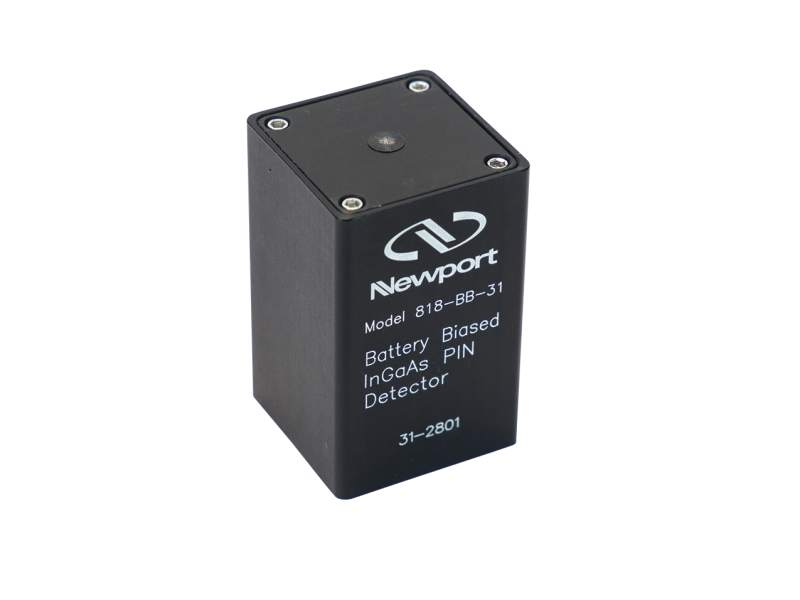

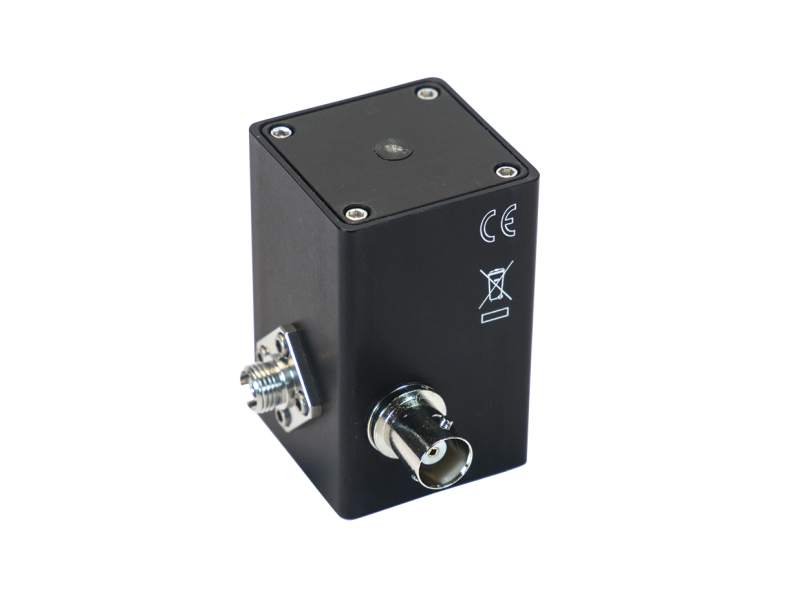

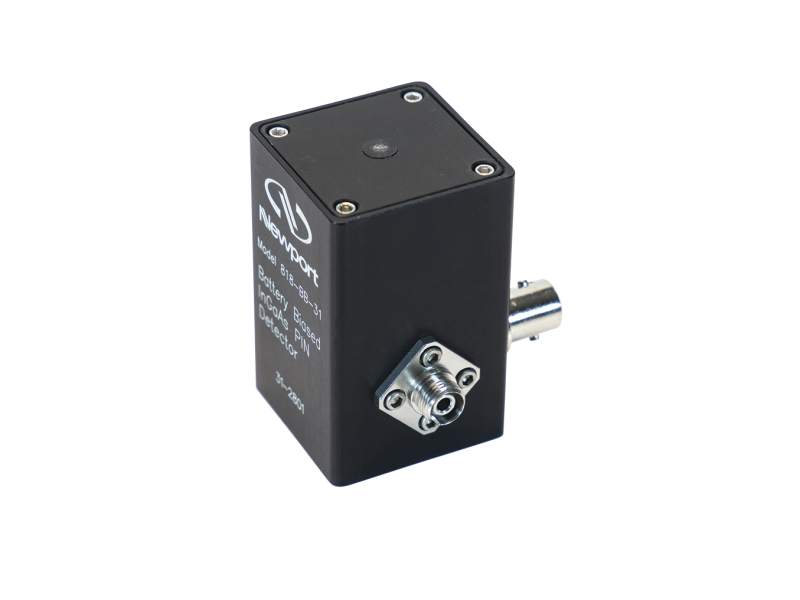

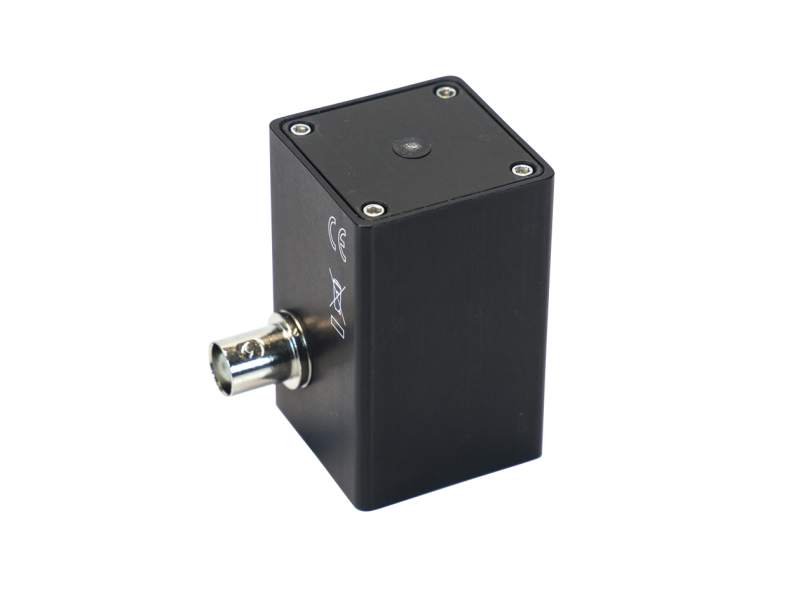

The 818-BB-31 High Speed Photodetector consists of a free-space 1000 to 1600 nm biased InGaAs detector with a 0.10 mm active diameter and a <175 ps rise time. The detector utilizes an FC input connector for use with fiber optic signals. It includes a built-in bias supply consisting of two standard 3 V lithium cells (6V total bias) and a 50 ohm BNC connector output. The batteries are easily replaceable, and by disconnecting the detector from the oscilloscope input, when not in use, you can extend the lifetime of the batteries. It is equivalent to Coherent's Model ET-3010 (P/N 120-10050-0001).

Silicon Free Space Optical Detectors

The 818-BB-21 and -40 consist of free-space, small and large area Silicon detectors, with rise times ranging from 300 ps to 1.5 ns. Each unit, other than the 818-BB-40, includes a built-in bias supply consisting of standard 3 V lithium cells and a 50 ohm BNC connector output. The 818-BB-40 comes with an external 24 VDC power supply.

UV-Enhanced Silicon Free Space Detector

The 818-BB-27 consists of a silicon detector with an enhanced ultraviolet response, making it well suited for the fourth harmonic Nd:YAG, YLF or Glass Lasers and Excimer Lasers. Additionally, its large active area and fast response time make it an excellent general-purpose biased detector for the 200 to 1100 nm wavelength region. To attain its fast response, this detector comes with a 24 VDC external power supply.

InGaAs Free Space Detectors

The 818-BB-30, -31, and -35 consist of free-space, small and large area InGaAs detectors, with rise times ranging from 300 ps to 1.5 ns for covering the 1000-1600 nm wavelength range. Each unit includes a built-in bias supply consisting of standard 3 V lithium cells and a 50 ohm BNC connector output. The 818-BB-51 features an extended InGaAs photodetector with a wavelength range of 1475–2100 nm.

GaAs Free Space Detector

The 818-BB-45 high speed optical detector consists of free-space 40 µm diameter GaAs photodetector, with a 30 ps rise time and 12.5 GHz bandwidth. It includes a built-in bias supply consisting of single 3 V lithium cell and a 50 ohm BNC connector output. The batteries are easily replaceable and by disconnecting the detector from the oscilloscope input, when not in use, you can extend the lifetime of the batteries.

Optical Post Mounting

An 8-32 threaded hole at the bottom of 818-BB biased photoreceivers allows for optical post mounting.

Handle With ESD Care

These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP , when unpacking and handling these devices.

Rise Times as Fast as 25 ps

The 818-BB-35 and 818-BB-45 photodiode detector modules offer a low-cost solution for ultra-fast measurements offering a 12.5 GHz bandwidth. These detectors are suitable for applications where detector rise time of <25 ps (<30 ps for 818-BB-45) are required for Q-switched and Ultrafast Laser output analysis. These detectors also utilize 3 V lithium cells (supplied).

Specifications

Technical Specs

Optical Input
Fiber-optic
Device Type
Biased Detector
Detector Diameter
0.1 mm
Detector Material
InGaAs
Detector Type
PIN
Acceptance Angle
20°
Wavelength Range
1000-1600 nm
3 dB Bandwidth
DC to 2 GHz
Rise Time
175 ps
Responsivity
0.9 A/W @ 1300 nm
Output Connector
BNC
Amplified
No

Bias Voltage
6 V
Cut-off Frequency
>2 GHz
Dark Current
<1 nA
Junction Capacitance
<1.25 pF
Reverse Breakdown
25 V
NEP
0.03 pW/√Hz
Fall Time
<175 ps
Saturation Current
10 mA
Power Requirements
Two 3V lithium batteries (Duracell DL2430 or equivalent)
Thread Type
8-32 and M4

Optical Input
Fiber-optic
Device Type
Biased Detector
Detector Diameter
0.1 mm
Detector Material
InGaAs
Detector Type
PIN
Acceptance Angle
20°
Wavelength Range
1000-1600 nm
3 dB Bandwidth
DC to 2 GHz
Rise Time
175 ps
Responsivity
0.9 A/W @ 1300 nm
Output Connector
BNC
Amplified
No

Bias Voltage
6 V
Cut-off Frequency
>2 GHz
Dark Current
<1 nA
Junction Capacitance
<1.25 pF
Reverse Breakdown
25 V
NEP
0.03 pW/√Hz
Fall Time
<175 ps
Saturation Current
10 mA
Power Requirements
Two 3V lithium batteries (Duracell DL2430 or equivalent)
Thread Type
8-32 and M4
