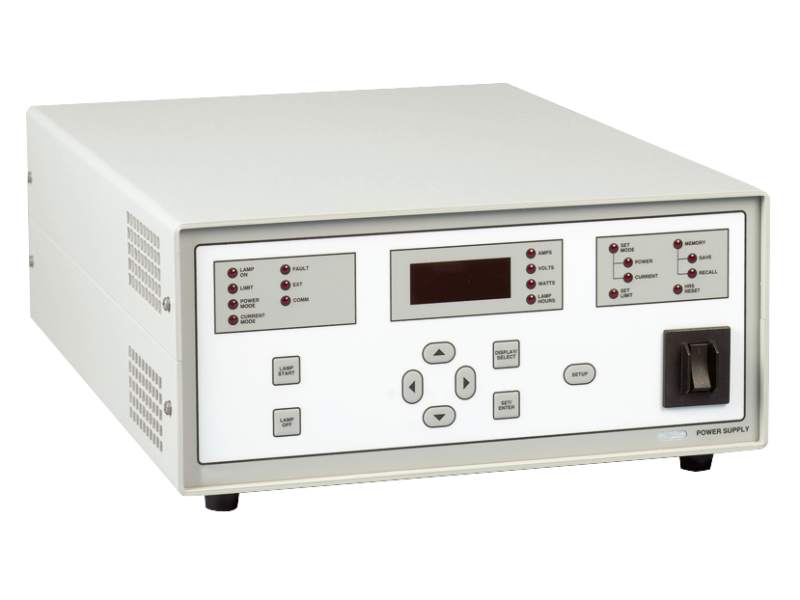

Arc Lamp Power Supply, Universal, 40 to 200 Watt
Arc Lamp Power Supply, Universal, 40 to 200 Watt
Model: 69907
1 Week
Product Series Overview
Arc Lamp Power SuppliesThe 69907 Universal Arc Lamp Power Supply is used to power light source kits rated up to 200 W as well as 200 W solar simulators. It is highly regulated and maintains a very stable light output. For long-term stability-critical applications, the Digital Exposure System is recommended. It can compensate for factors beyond the power supply’s control, such as lamp aging, electrode erosion, and gas absorption. The 69907 has an RS-232 computer interface in order to set the lamp operating parameters, monitor the light output levels, and turn power on/off remotely.
Use 70050 cable when powering a xenon or mercury-xenon lamp.
Use 70051 cable when powering a mercury lamp.
Specifications
- Lamp Wattage40 - 200 W (Recommended)
40 - 300 W (Maximum) - Operating ModeConstant Power or Constant Current
- Light Ripple< 0.5% RMS
- Digital Meter Resolution, Current0.1 A
- Digital Meter Resolution, Power1 W
- Digital Meter Resolution, Voltage0.1 VDC
- Accuracy< 0.1% (% full scale)
- Line Regulation± 0.05%
- Power Requirements95 - 264 VAC, 47 - 63 Hz
- Operating Temperature10 - 40°C
- Safety Interlock Voltage12 VDC/GND
- Input Circuit Breaker5 A, 2 Pole
- Dimensions16.0 x 12.0 x 5.18 inch [406 x 305 x 131.6 mm] (L x W x H)
- Weight20 lbs. [9 kg]
Resources & Downloads
2D Product Drawings
699XX Dimensions(518.3 kB, PDF)
Manuals
Oriel 69907 Power Supply User Manual(532.9 kB, PDF)
Other
MKS EU ROHS3 - 699XX Series Lamp Power Supplies.pdf(243.9 kB, PDF)
