Adapter Kit, Q Series Lamp Housing to Light Intensity Controller/Timer

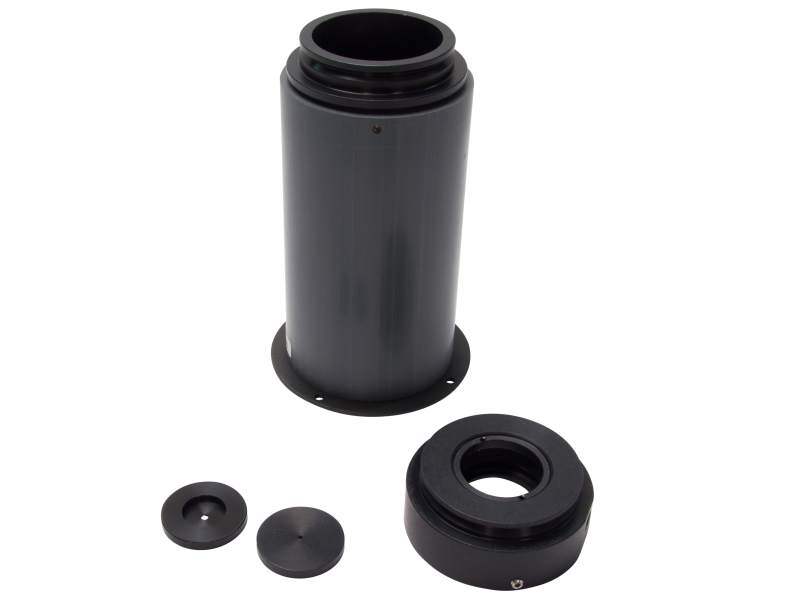

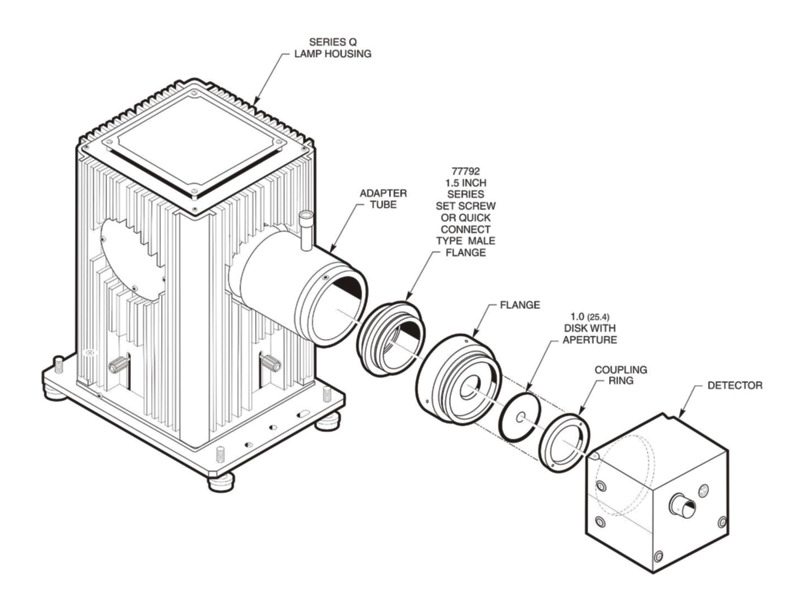

The 68954 is an adapter kit used to connect a Series Q lamp housing to the 68950 Light Intensity Controller and Digital Timer. The kit connects to an unused port on the 60000 Q Series Lamp Housing. It includes two apertures, either of which can be inserted to prevent saturation of the feedback detector. Aperture opening are 1 mm (.039 inch) and 2 mm (.079 inch) diameter. The kit may also be used to hold a 25.4 mm (1 inch) diameter optic, up to 6.1 mm (.024 inch) thick, when stacked together with the aperture. This kit, used together with the 68950, is compatible with the 69907 and 69931 lamp power supplies.

Specifications

Technical Specs

Type
Adapter Kit
Use
Q Series Lamp Housing

Type
Adapter Kit
Use
Q Series Lamp Housing

Resources & Downloads

MKS EU ROHS3 - 68952 and 68954 Light Intensity Controller Adapter Kits.pdf(229.3 kB, PDF)

Related Products

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77792Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male	UNIVERSAL		1 Week	$95
		7123Flange Mounted Cell, 1.0 in. Diameter Optics, 1.5 Inch Flange	UNIVERSAL		3 Weeks	$95

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		68950Digital Exposure System, Research Lamp Sources	UNIVERSAL		Contact Us	$6,820
