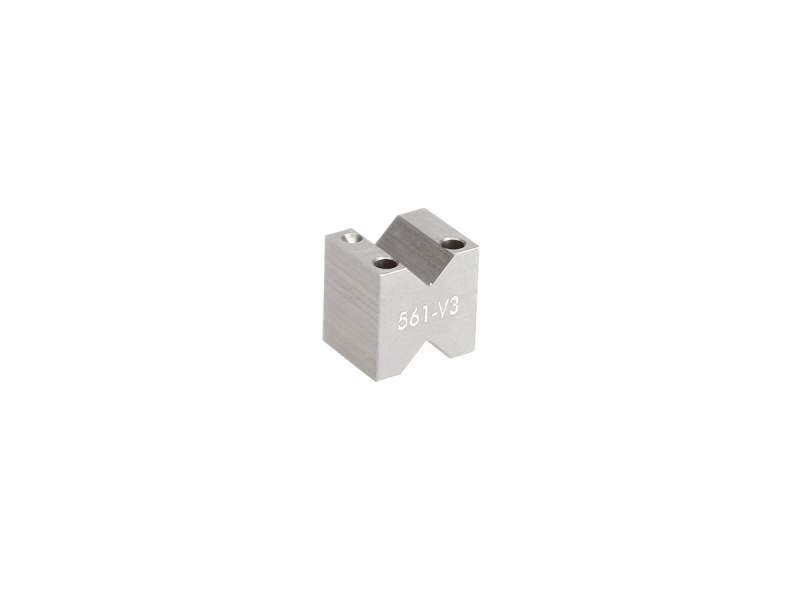

V-Groove Module, 3 & 3.25 mm

Model: 561-V3

$92

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Fiber Alignment Accessories

The 561-V3 V-Groove Module attaches 3 and 3.25 mm diameter cylindrical devices to a 561 Series stage. Ideal for GRIN lenses, fiber collimators, and fiber ferrules, the module can be gently held in a 561-MM Module Mount.

Specifications

Technical Specs

Material

Aluminum

Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-V3-ENV-S (183.9 kB, PDF)

Other

561-V3_RoHS2021.pdf (684.4 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
561-BL1 Ball Lens Module, 1 mm, 561 Series	UNIVERSAL	In Stock	$92
561-BL3 Ball Lens Module, 3 mm, 561 Series	UNIVERSAL	In Stock	$92
561-V1 V-Groove Module, 1–1.75 mm	UNIVERSAL	In Stock	$92
561-BL2 Ball Lens Module, 2 mm, 561 Series	UNIVERSAL	In Stock	$92
561-V2 V-Groove Module, 2–2.75 mm	UNIVERSAL	In Stock	$92

Compatible

Description	Compatibility	Avail.	Price
561D-XYZ-LH Fiber Alignment Stage, ULTRAlign, Left-Handed, 6 mm XZ 13 mm Y Travel, 8-32	IMPERIAL	In Stock	$2,513
561-UM Universal Module, 561/562 Rail	IMPERIAL	In Stock	$116
561D-YZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 6 mm Z 13 mm Y Travel, 8-32	IMPERIAL	In Stock	$1,533
561-MM Optical Module Mount, 561 Series	UNIVERSAL	In Stock	$217
561D-XYZ Fiber Alignment Stage, ULTRAlign, Right-Handed, 6 mm XZ 13 mm Y Travel, 8-32	IMPERIAL	In Stock	$2,513
