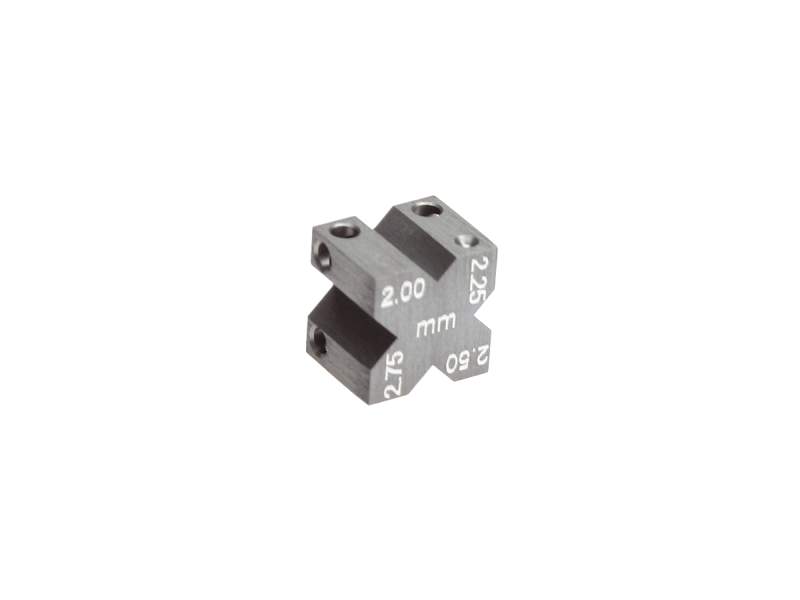

V-Groove Module, 2–2.75 mm

ULTRAlign Fiber Alignment Accessories

The 561-V2 V-Groove Module attaches 2 to 2.75 mm diameter cylindrical devices to a 561 Series stage. Ideal for GRIN lenses, fiber collimators, and fiber ferrules, the module can be gently held in a 561-MM Module Mount.

Specifications

Technical Specs

Material
Aluminum

Material
Aluminum

Resources & Downloads

2D Product Drawings

561-V2-ENV-S(185.6 kB, PDF)

Other

561-V2_RoHS2021.pdf(683.4 kB, PDF)
