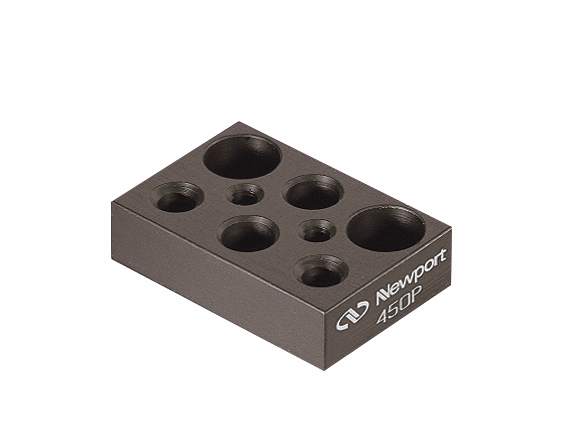

Adaptor Plate, 450A Linear Stage

450A Series Compact Ball Bearing Stage

The 450P Adaptor Plate provides a set of tapped and clearance mounting holes to accommodate post holders and other components, and to provide attachment to optical tables and breadboards.

Specifications

Technical Specs

Material
Aluminum
Dimensions
1.5 x 1.0 x 0.375 in.
Thread Type
8-32 & 1/4-20

Material
Aluminum
Dimensions
1.5 x 1.0 x 0.375 in.
Thread Type
8-32 & 1/4-20

Resources & Downloads

2D Product Drawings

450-PART.25per-S(81.2 kB, PDF)
