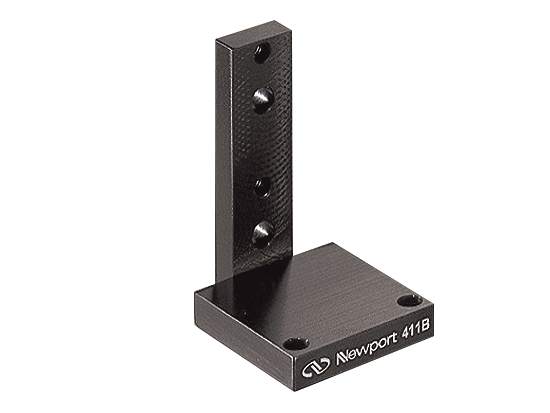

Vertical Mounting Bracket, 411 Series Linear Stage

Vertical Mounting Bracket, 411 Series Linear Stage

Model: 411B

$99

In Stock

Compare

Add to List

Product Series Overview

General Purpose Ball Bearing Stages

The 411B Vertical Mounting Bracket is for use with the 411 Series Linear Stage.

Specifications

Technical Specs

Material

Aluminum
Thread Type

8-32

Material

Aluminum
Thread Type

8-32

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

411-BART-25perc-S (80.3 kB, PDF)

Other

411B RoHS Certificate (681.7 kB, PDF)
