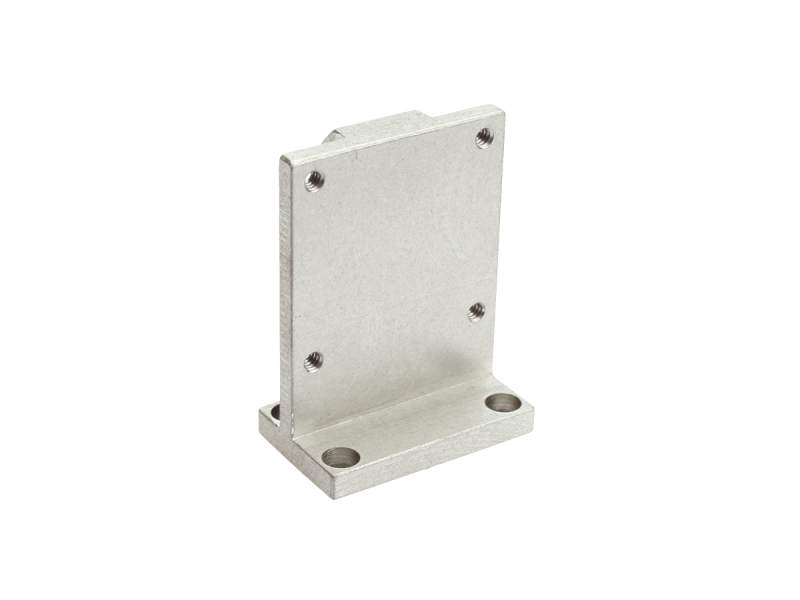

90 Degree Angle Bracket, SDS40 Stage

Model: SDS40-BK

$161

Show

Compare

Add to List

Product Series Overview

90 Degree Angle Brackets, SDS Series

The SDS40-BK 90° Angle Bracket is used to build multi-axis stage assemblies. It is constructed of stainless steel for high rigidity. It's profile is narrow; no wider than the SDS40 stage is attaches to. For additional flexibility, this angle brackets can also be used as an orthogonal platform for component mounting. SDS Series Angle Brackets are compatible with SDS Series linear stages, DS Series linear dovetail stages, RS Series rotation stages, and GON Series goniometers.

Specifications

Technical Specs

Type

90° Angle Bracket
Material

Stainless Steel
Thread Type

6-32

Dimensions

54 x 40 x 24 mm
Use

40 x 40 mm Stages

Type

90° Angle Bracket
Material

Stainless Steel
Thread Type

6-32

Dimensions

54 x 40 x 24 mm
Use

40 x 40 mm Stages

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SDS40BK-S (73.2 kB, PDF)

Other

SDS40-BK RoHS Certificate (278.5 kB, PDF)
