Dual Rod Mounting Assembly, Adjustable Height, 1/4-20 Thread
Dual Rod Mounting Assembly, Adjustable Height, 1/4-20 Thread
Model: 410-RC
Product Series Overview

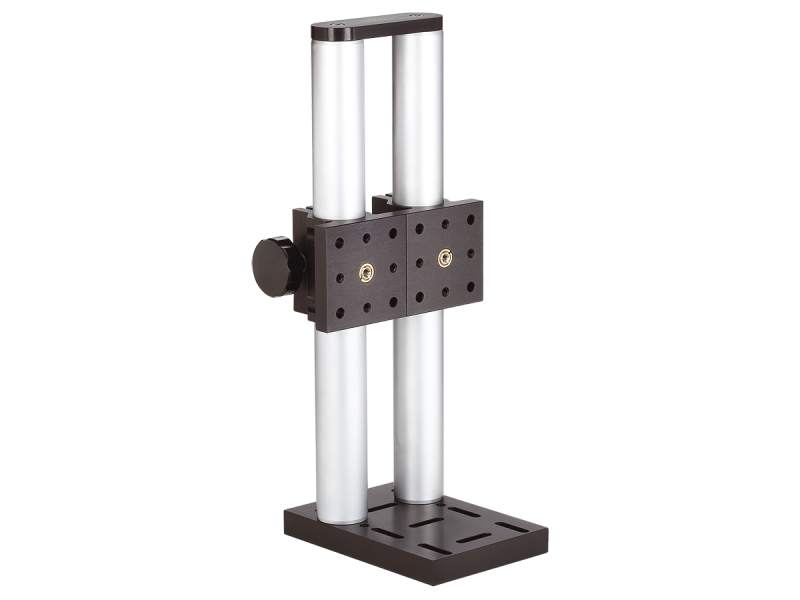

Dual Optical Rod SystemsThe 410-RC Adjustable Height Dual Rod Mounting Assembly positions heavy optical components and assemblies at various elevations with excellent stability. The assembly consists of two 1.5 in. (38.1 mm) diameter, 14.0 in. (355.6 mm) high solid steel rods attached to a heavy-duty base and connected together at the top. Each rod supports a rod clamp, Model 340-RC. The optional Model 410-RCP Mounting Plate attaches to the rod clamps and features a standard pattern of tapped holes for mounting virtually any component. For stable two-axis fine positioning using the Models 410-RC and 410-RCP, see our Model 401 stages.
Resources & Downloads
2D Product Drawings
410 DWG-S(106.7 kB, PDF)
Other
410-RC RoHS Certificate(285 kB, PDF)
Related Products
Customers Who Bought This Item Also Bought
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

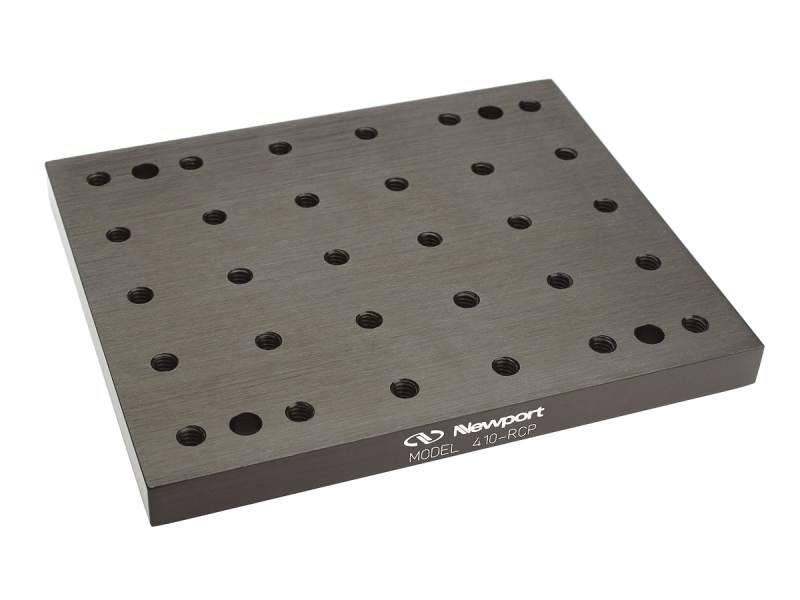

 | 410-RCPMounting Plate, Dual Rod Platform, 5 x 6 x 0.5 in., 1/4-20 Thread | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
