Fiber-Optic Receiver, 12 GHz, 780-870 nm, FC Multimode (RoHS and / or CE Pending)

12 GHz fiber-optic receiver new focus photoreceiver model 1544

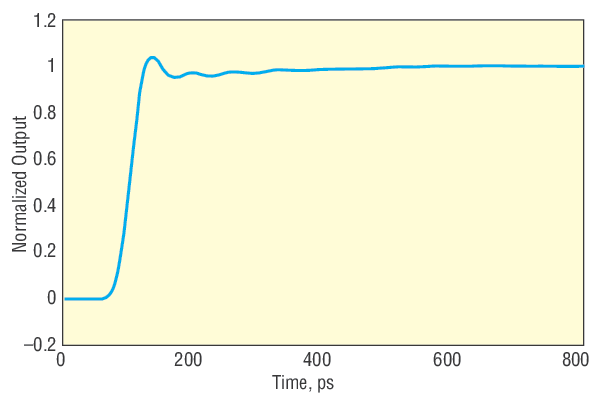

The 1580-A Fiber-Optic Receiver is ideal for applications that require high sensitivity, high speed, and clean responses. It offers clean responses and 32-ps rise times making it well-suited for time-domain characterization of 10-Gbit/s components. Its high gain and well-behaved frequency response also make it useful for frequency-domain measurements. It offers 780-870 nm responsivity and a 62.5 µm core multimode FC optical input.

An external power supply, which must be purchased separately, is required – we recommend our power supply. Power supply cables and are included with each detector.

Specifications

Technical Specs

Detector Material
GaAs
Detector Type
PIN
Wavelength Range
780-870 nm

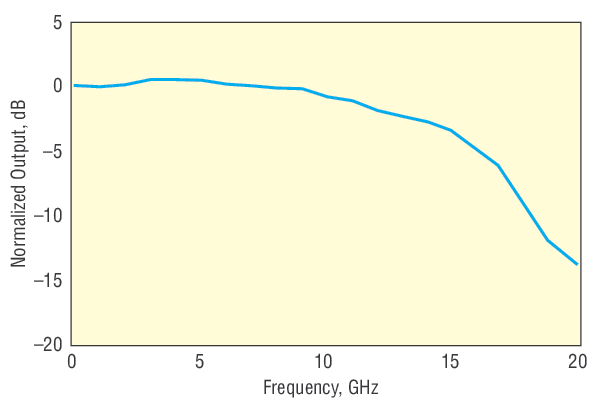

3 dB Bandwidth
10 kHz to 12 GHz
Fiber-Optic Connector
FC/UPC
Fiber Type
Multimode
Core Diameter
62.5 µm
Maximum Conversion Gain
-450 V/W
Maximum Transimpedance Gain
-1000 V/A

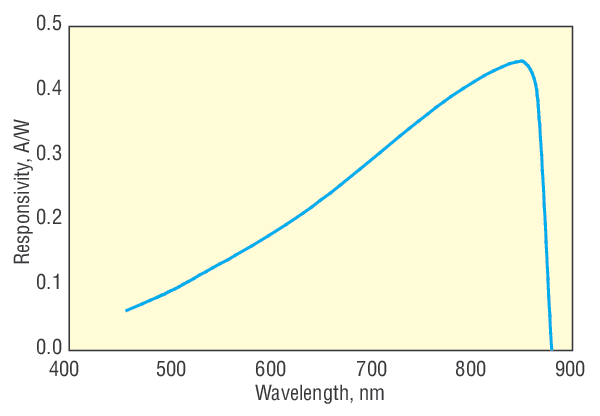

Peak Responsivity
0.4 A/W
NEP
42 pW/√Hz

Rise Time
32 ps
Saturation Power
1.5 mW
Output Connector
Wiltron K
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
50 kHz
DC Bias Monitor Transimpedance Gain
1 V/mA
DC Bias Monitor Output
SMA
DC Bias Monitor Output Impedance
10k Ω
Power Requirements
±15 VDC, 200 mA

Detector Material
GaAs
Detector Type
PIN
Wavelength Range
780-870 nm
3 dB Bandwidth
10 kHz to 12 GHz
Fiber-Optic Connector
FC/UPC
Fiber Type
Multimode
Core Diameter
62.5 µm
Maximum Conversion Gain
-450 V/W
Maximum Transimpedance Gain
-1000 V/A
Peak Responsivity
0.4 A/W
NEP
42 pW/√Hz

Rise Time
32 ps
Saturation Power
1.5 mW
Output Connector
Wiltron K
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
50 kHz
DC Bias Monitor Transimpedance Gain
1 V/mA
DC Bias Monitor Output
SMA
DC Bias Monitor Output Impedance
10k Ω
Power Requirements
±15 VDC, 200 mA

Resources & Downloads

Manuals

High-Speed Detectors and Receivers User's Manual(341.5 kB, PDF)

2D Product Drawings

15XXmech_dwg_2005(96.7 kB, PDF)
15xx-A Drawing.pdf(850.8 kB, PDF)
