Brewster Angle Dispersing Prism, Ultrafast, SF10, 25 mm, 370-2000 nm

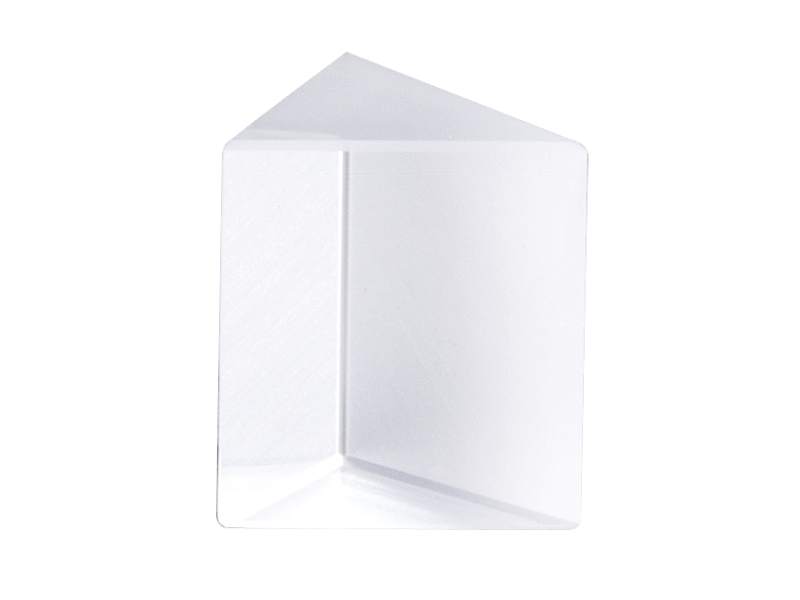

Brewster Angle Dispersing Prisms for Ultrashort Pulses

The 10SF10 Ultrafast Laser Brewster Angle Dispersing Prism is a 25.0 mm Prism made with SF10, and optimized for 370-2000 nm. These prisms are used intracavity to compensate for dispersion of fixed cavity optics, such as a Ti:Sapphire crystal, or external cavity to manipulate pulse characteristics.

Specifications

Technical Specs

Transmission
370–2000 nm
Size
25 x 25 x 25 mm
Material
N-SF10
Apex Angle
60.60°
Antireflection Coating
Uncoated

Surface Quality
40-20 scratch-dig
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Size Tolerance
+0/-0.25 mm

Transmission
370–2000 nm
Size
25 x 25 x 25 mm
Material
N-SF10
Apex Angle
60.60°
Antireflection Coating
Uncoated

Surface Quality
40-20 scratch-dig
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Size Tolerance
+0/-0.25 mm

Resources & Downloads

2D Product Drawings

ULTRAFA3-S(76.3 kB, PDF)

Other

10SF10_ROHS2-2021_w_ex.pdf(280.2 kB, PDF)

Application Notes

Prism Compressor for Ultrashort Laser Pulses(4.2 MB, PDF)
