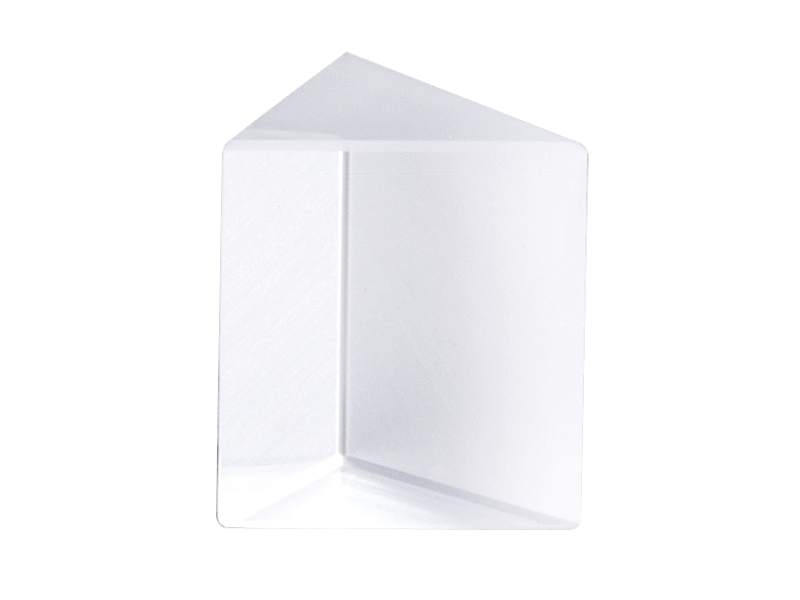

Brewster Angle Dispersing Prism, Ultrafast, SF10, 15 mm, 370-2000 nm
Brewster Angle Dispersing Prism, Ultrafast, SF10, 15 mm, 370-2000 nm
Model: 06SF10
Product Series Overview
Brewster Angle Dispersing Prisms for Ultrashort PulsesThe 06SF10 Ultrafast Laser Brewster Angle Dispersing Prism is a 15.0 mm Prism made with SF10, and optimized for 370-2000 nm. These prisms are used intracavity to compensate for dispersion of fixed cavity optics, such as a Ti:Sapphire crystal, or external cavity to manipulate pulse characteristics.
Specifications
- Transmission370–2000 nm
- Size15 x 15 x 15 mm
- MaterialN-SF10
- Apex Angle60.60°
- Antireflection CoatingUncoated
- Surface Quality40-20 scratch-dig
- Surface Flatness≤λ/10 at 632.8 nm over the clear aperture
- Size Tolerance+0/-0.25 mm
Resources & Downloads
3D Product Models
2D Product Drawings
ULTRAFA3-S(76.3 kB, PDF)
Other
06SF10_ROHS2-2021_w_ex.pdf(280.5 kB, PDF)
Application Notes
Prism Compressor for Ultrashort Laser Pulses(4.2 MB, PDF)
