Brewster Angle Dispersing Prism, Ultrafast, UVFS, 15 mm, 185-2100 nm

Brewster Angle Dispersing Prisms for Ultrashort Pulses

The 06SB10 Ultrafast Laser Brewster Angle Dispersing Prism is a 15.0 mm Prism made with UV grade fused silica, and optimized for 185-2100 nm. These prisms are used intracavity to compensate for dispersion of fixed cavity optics, such as a Ti:Sapphire crystal, or external cavity to manipulate pulse characteristics.

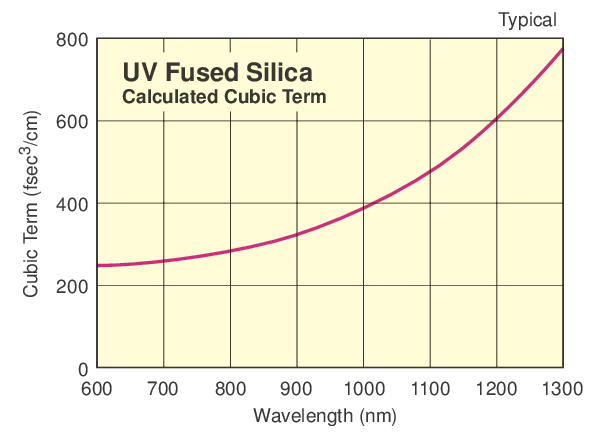

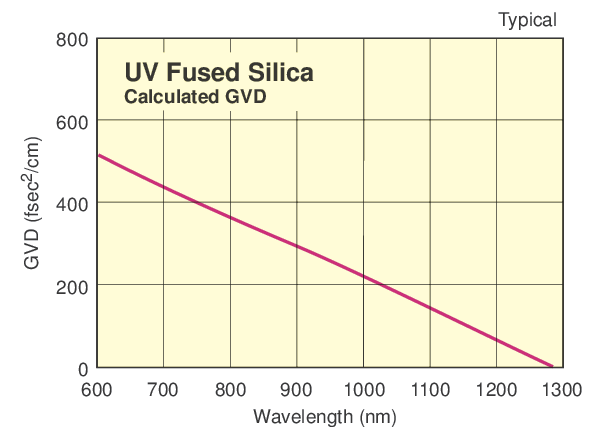

Specifications

Technical Specs

Transmission
185–2100 nm
Size
15 x 15 x 15 mm
Material
UV Grade Fused Silica
Apex Angle
69.06°
Antireflection Coating
Uncoated
Surface Quality
40-20 scratch-dig
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture

Clear Aperture
≥90% of face
Chamfers
0.5 mm face width
Chamfers Angle Tolerance
45° maximum
Cleaning
See How to Clean Optics

Transmission
185–2100 nm
Size
15 x 15 x 15 mm
Material
UV Grade Fused Silica
Apex Angle
69.06°
Antireflection Coating
Uncoated
Surface Quality
40-20 scratch-dig
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture

Clear Aperture
≥90% of face
Chamfers
0.5 mm face width
Chamfers Angle Tolerance
45° maximum
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

ULTRAFA3-S(76.3 kB, PDF)

Other

06SB10 RoHS Certificate(707.7 kB, PDF)

Application Notes

Prism Compressor for Ultrashort Laser Pulses(4.2 MB, PDF)
