Longpass Filter, Dielectric, 25.4 mm, 450 ± 5 nm Cut-On, 460 - 1200 nm

1 inch (25.4 mm) dielectric coated bandpass filter

The 10LWF-450-B Dielectric Longpass Edge Filter is a 1 inch (25.4 mm) diameter optical filter with a 450 ±5 nm cut-on wavelength and a 460 to 1200 nm transmittance range. Long-wave pass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass filters. Longpass filters have out-of-band rejection ≥OD 3 to X-ray. Typical transmission is ≥80%.

Specifications

Technical Specs

Type
Dielectric Longpass Filter
Optic Size
Ø25.4 mm
Cut-on Wavelength
450 nm
Cut-on Wavelength Tolerance
± 5 nm
Transmittance Range
460 - 1200 nm
Transmission
≥80%
Effective Index of Refraction
1.7
Surface Quality
80-50 scratch-dig

Thickness
0.25 in.
Size Tolerance
+0/-0.5 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.025 nm/°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Type
Dielectric Longpass Filter
Optic Size
Ø25.4 mm
Cut-on Wavelength
450 nm
Cut-on Wavelength Tolerance
± 5 nm
Transmittance Range
460 - 1200 nm
Transmission
≥80%
Effective Index of Refraction
1.7
Surface Quality
80-50 scratch-dig

Thickness
0.25 in.
Size Tolerance
+0/-0.5 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.025 nm/°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Resources & Downloads

2D Product Drawings

BAND-S(58.2 kB, PDF)

Other

10LWF-450-B RoHS Certificate(265.2 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
10BPF25-400Bandpass Filter, 25.4 mm, 400±3.5 nm Center, 25±3.5 nm FWHM	UNIVERSAL	In Stock	$190

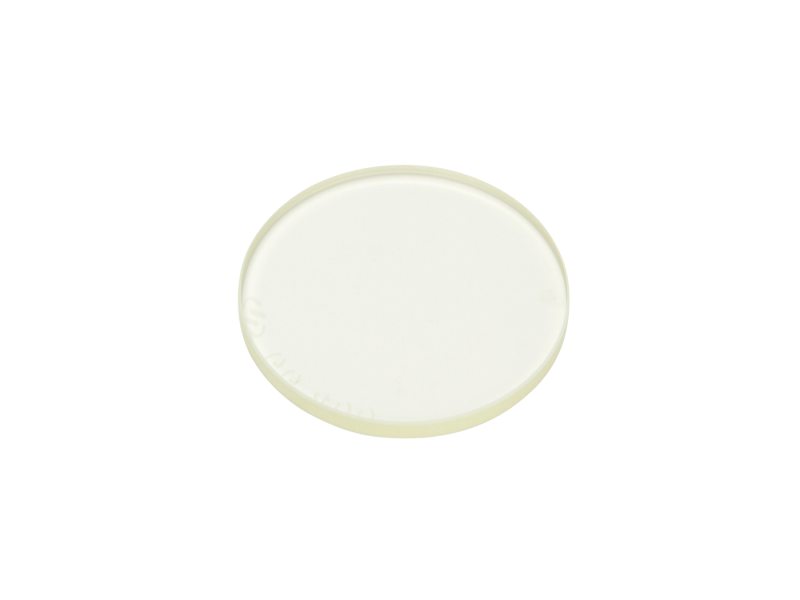

FSR-GG400Longpass Filter, Colored Glass, 25.4 mm, 400 nm Cut-on, GG400 Glass	UNIVERSAL	In Stock	$50
10SWF-450-BOptical Filter, Shortpass, 25.4 mm, 450 nm Cut-off, 415-440 nm Transmission	UNIVERSAL	In Stock	$146

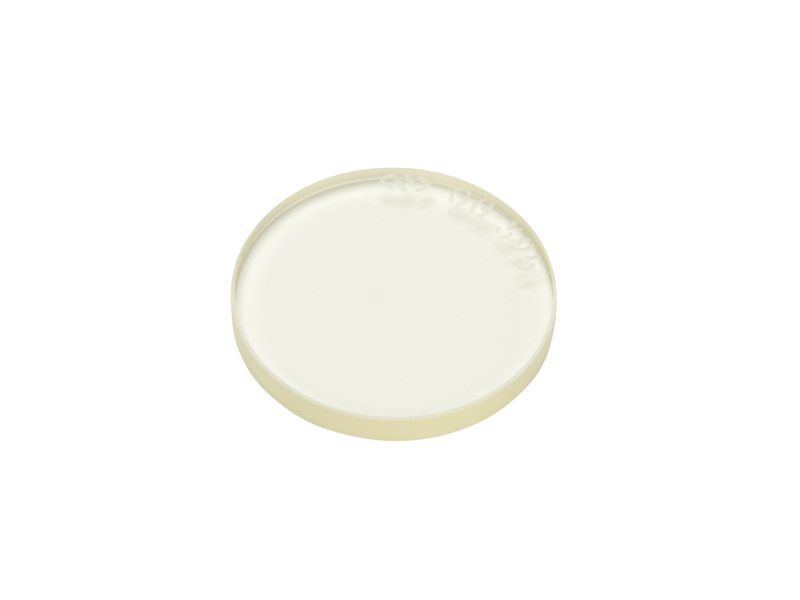

FSR-GG395Longpass Filter, Colored Glass, 25.4 mm, 395 nm Cut-on, GG395 Glass	UNIVERSAL	In Stock	$50
