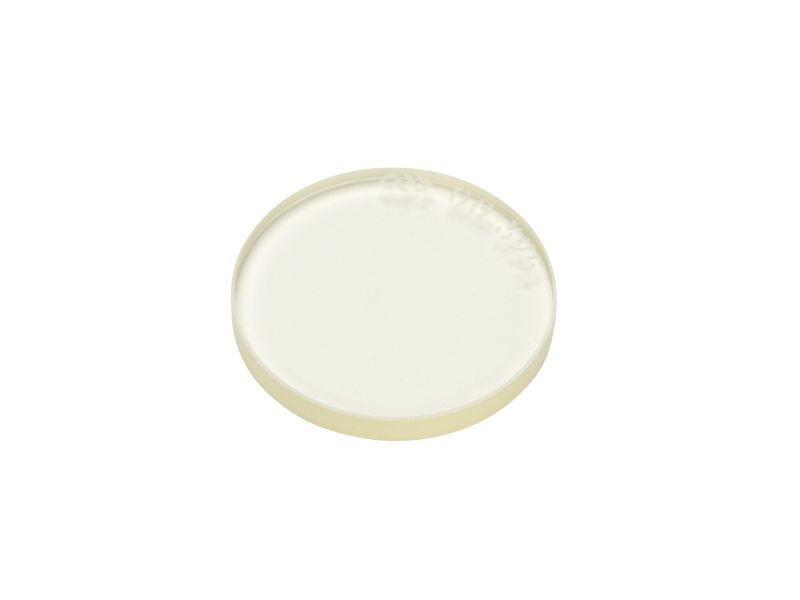

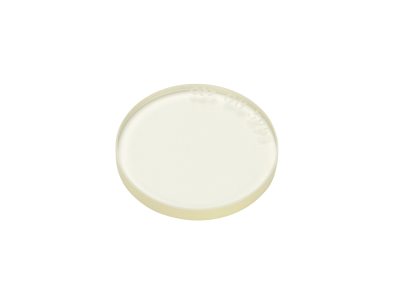

Longpass Filter, Colored Glass, 25.4 mm, 395 nm Cut-on, GG395 Glass
Longpass Filter, Colored Glass, 25.4 mm, 395 nm Cut-on, GG395 Glass
Model: FSR-GG395
In Stock
Product Series Overview
Colored Glass Absorptive Longpass FiltersThe FSR-GG395 Colored Glass Longpass Filter is a 25.4 mm diameter 395 nm cut-on optical filter made of Schott BG395 filter glass. This long-wave pass edge filter is precision polished for demanding research or OEM applications.
Specifications
- TypeColored Glass Longpass Filter
- Optic SizeØ25.4 mm
- Cut-on Wavelength395 nm
- Angle of Incidence0°
- MaterialSchott GG395 or equivalent
- Thickness Tolerance±0.1 mm
- Surface Flatness≤1λ at 632.8 nm over the clear aperture
- Thickness2.0 to 3.0 mm, typical
- Surface Quality60-40 scratch-dig
- Size Tolerance±0.3 mm
- Clear Aperturecentral ≥ 80% of diameter
- ChamfersUp to 1 mm face width
- Cleaning
- Damage Threshold30 W/cm2 CW, Typical
- Wedge≤3 arc min
- Chamfers Angle Tolerance45° ±15°
Resources & Downloads
2D Product Drawings
FBR-NDXX-S(62 kB, PDF)
Other
FSR-GG395_ROHS2-2021_w_ex.pdf(279.7 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 10BPF70-400Bandpass Filter, 25.4 mm, 400±10 nm Center, 70±30 nm FWHM | In Stock | ||||
 | FSR-GG400Longpass Filter, Colored Glass, 25.4 mm, 400 nm Cut-on, GG400 Glass | In Stock | ||||

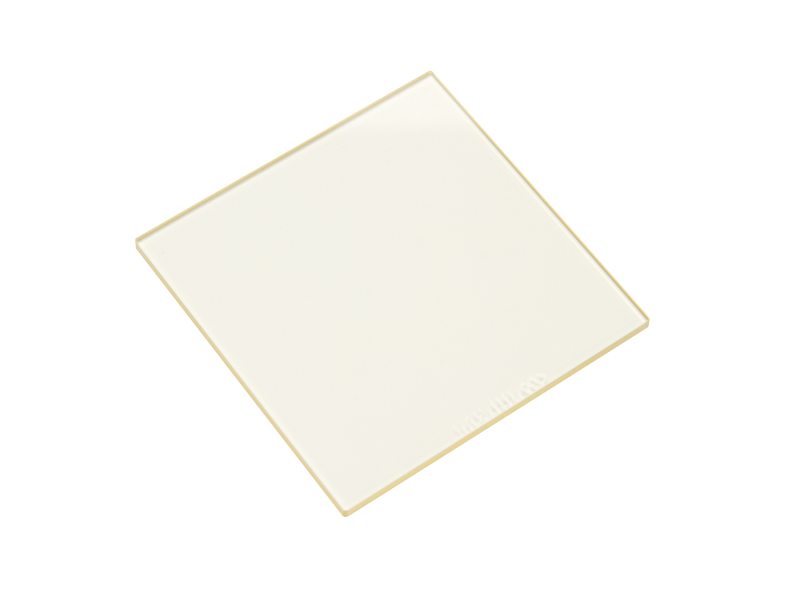

 | FSQ-GG395Longpass Filter, Colored Glass, 50.8 x 50.8 mm, 395 nm Cut-on, GG395 Glass | In Stock |
