Longpass Filter, Dielectric, 25.4 mm, 1000±7 nm Cut-On, 1020 - 2200 nm

1 inch (25.4 mm) dielectric coated bandpass filter

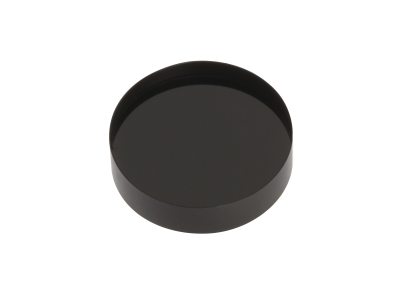

The 10LWF-1000-B Dielectric Longpass Edge Filter is a 1 inch (25.4 mm) diameter optical filter with a 1000 ±7 nm cut-on wavelength and a 1020 to 2200 nm transmittance range. Long-wave pass filters have a steep transition between the region of transmission and reflection that is much steeper than colored glass filters. Longpass filters have out-of-band rejection ≥OD 3 to X-ray. Typical transmission is ≥80%.

Specifications

Technical Specs

Type
Dielectric Longpass Filter
Optic Size
Ø25.4 mm
Cut-on Wavelength
1000 nm
Cut-on Wavelength Tolerance
± 7 nm
Transmittance Range
1020 - 2200 nm
Transmission
≥80%
Effective Index of Refraction
1.7
Surface Quality
80-50 scratch-dig

Thickness
0.3 in.
Size Tolerance
+0/-0.5 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.025 nm/°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Type
Dielectric Longpass Filter
Optic Size
Ø25.4 mm
Cut-on Wavelength
1000 nm
Cut-on Wavelength Tolerance
± 7 nm
Transmittance Range
1020 - 2200 nm
Transmission
≥80%
Effective Index of Refraction
1.7
Surface Quality
80-50 scratch-dig

Thickness
0.3 in.
Size Tolerance
+0/-0.5 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.025 nm/°C
Humidity Resistance
Per MIL-STD-810E, Method 507.3, Procedure III Modified to 7 cycles

Resources & Downloads

2D Product Drawings

BAND-S(58.2 kB, PDF)

Other

10LWF-1000-B RoHS Certificate(265.1 kB, PDF)
