Compare Model Drawings, CAD & Specs Wavelength Range Mirror Size Thickness Surface Quality Surface Flatness Availability Price
10Z20AL.2
$135
In Stock
 10Z20AL.2 250-600 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $135
10Z20ER.1
$133
In Stock
 10Z20ER.1 450-700 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $133
10Z20ER.2
$147
In Stock
 10Z20ER.2 480-20000 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $147
10Z20ER.4
$153
In Stock
 10Z20ER.4 650-20000 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $153
10Z40AL.2
$226
In Stock
 10Z40AL.2 250-600 nm Ø25.4 mm 6.0 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $226
10Z40ER.1
$226
In Stock
 10Z40ER.1 450-700 nm Ø25.4 mm 6.0 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $226
10Z40ER.2
$226
In Stock
 10Z40ER.2 480-20000 nm Ø25.4 mm 6.0 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $226
10Z40ER.4
$226
In Stock
 10Z40ER.4 650-20000 nm Ø25.4 mm 6.0 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $226
20Z20AL.2
$307
Contact Us
 20Z20AL.2 250-600 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
Contact Us
 $307
20Z20ER.1
$302
In Stock
 20Z20ER.1 450-700 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $302
20Z20ER.2
$378
In Stock
 20Z20ER.2 480-20000 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $378
20Z20ER.4
$407
In Stock
 20Z20ER.4 650-20000 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $407
20Z40AL.2
$509
In Stock
 20Z40AL.2 250-600 nm Ø50.8 mm 12.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $509
20Z40ER.1
$489
6 Weeks
 20Z40ER.1 450-700 nm Ø50.8 mm 12.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
6 Weeks
 $489
20Z40ER.2
$533
In Stock
 20Z40ER.2 480-20000 nm Ø50.8 mm 12.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $533
20Z40ER.4
$545
In Stock
 20Z40ER.4 650-20000 nm Ø50.8 mm 12.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $545
30Z20ER.1
$737
In Stock
 30Z20ER.1 450-700 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $737
30Z20ER.2
$882
In Stock
 30Z20ER.2 480-20000 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $882
30Z20ER.4
$930
In Stock
 30Z20ER.4 650-20000 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $930
30Z40ER.1
$963
In Stock
 30Z40ER.1 450-700 nm Ø76.2 mm 14.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
In Stock
 $963
30Z40ER.2
$1,123
3 Weeks
 30Z40ER.2 480-20000 nm Ø76.2 mm 14.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
3 Weeks
 $1,123
30Z40ER.4
$1,159
1 Week
 30Z40ER.4 650-20000 nm Ø76.2 mm 14.7 mm 10-2 scratch-dig λ/20 at 632.8 nm
1 Week
 $1,159
40Z20ER.1
$1,398
In Stock
 40Z20ER.1 450-700 nm Ø101.6 mm 17.7 mm 20-10 scratch-dig λ/10 at 632.8 nm
In Stock
 $1,398
40Z20ER.2
$1,574
In Stock
 40Z20ER.2 480-20000 nm Ø101.6 mm 17.7 mm 20-10 scratch-dig λ/10 at 632.8 nm
In Stock
 $1,574
40Z40AL.2
$1,637
4 Weeks
 40Z40AL.2 250-600 nm Ø101.6 mm 17.7 mm 10-5 scratch-dig λ/20 at 632.8 nm
4 Weeks
 $1,637
40Z40ER.1
$1,914
Contact Us
 40Z40ER.1 450-700 nm Ø101.6 mm 17.7 mm 10-5 scratch-dig λ/20 at 632.8 nm
Contact Us
 $1,914
40Z40ER.2
$2,074
Contact Us
 40Z40ER.2 480-20000 nm Ø101.6 mm 17.7 mm 10-5 scratch-dig λ/20 at 632.8 nm
Contact Us
 $2,074
60Z20ER.2
$4,784
7 Weeks
 60Z20ER.2 480-20000 nm Ø152.4 mm 23.5 mm 20-10 scratch-dig λ/10 at 632.8 nm
7 Weeks
 $4,784
60Z40AL.2
$4,783
6 Weeks
 60Z40AL.2 250-600 nm Ø152.4 mm 23.5 mm 10-5 scratch-dig λ/20 at 632.8 nm
6 Weeks
 $4,783
60Z40ER.1
$4,761
In Stock
 60Z40ER.1 450-700 nm Ø152.4 mm 23.5 mm 10-5 scratch-dig λ/20 at 632.8 nm
In Stock
 $4,761
60Z40ER.2
$6,548
In Stock
 60Z40ER.2 480-20000 nm Ø152.4 mm 23.5 mm 10-5 scratch-dig λ/20 at 632.8 nm
In Stock
 $6,548
80Z10ER.1
$7,792
In Stock
 80Z10ER.1 450-700 nm Ø203.2 mm 29.5 mm 20-10 scratch-dig λ/5 at 632.8 nm
In Stock
 $7,792
80Z20AL.2
$10,328
In Stock
 80Z20AL.2 250-600 nm Ø203.2 mm 29.5 mm 10-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $10,328
80Z20ER.1
$10,268
Contact Us
 80Z20ER.1 450-700 nm Ø203.2 mm 29.5 mm 10-5 scratch-dig λ/10 at 632.8 nm
Contact Us
 $10,268
80Z20ER.2
$12,054
In Stock
 80Z20ER.2 480-20000 nm Ø203.2 mm 29.5 mm 10-5 scratch-dig λ/10 at 632.8 nm
In Stock
 $12,054

Specifications

  • Wavelength Region
    250-600 nm, 450-700 nm, 480-20000 nm, 650-20000 nm
  • Mirror Shape
    Round
  • Diameter
    25.4 mm, 50.8 mm, 76.2 mm, 101.6 mm, 152.4 mm, 203.2 mm
  • Thickness
    6.0 mm, 12.7 mm, 14.7 mm, 17.7 mm, 23.5 mm, 29.5 mm
  • Material
    Zerodur
  • Angle of Incidence
    0-45°
  • Clear Aperture
    ≥central 80% of diameter
  • Cleaning
    See How to Clean Optics

Features

Zerodur® Substrates

Zerodur® is a unique glass-ceramic material with a nearly zero coefficient of thermal expansion and excellent homogeneity of this coefficient throughout its entire piece. It is the best choice when extreme thermal stability is required or for environments with large temperature fluctuations. For more information, please see our Optical Materials technical note.

Enhanced Aluminum UV Coating

Our AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 – 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal.

Enhanced Aluminum VIS-NIR Coating

Our ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450-700 nm.

Protected Silver VIS-IR Coating

Our ER.2 protected silver coating is composed of a low emissivity silver film fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. Average reflectivity is greater than 96% from 480 – 1100 nm and greater than 98.5% from 1.1 – 20 µm. This silver mirror is a favorite for Ultrafast scientists who want an inexpensive option.

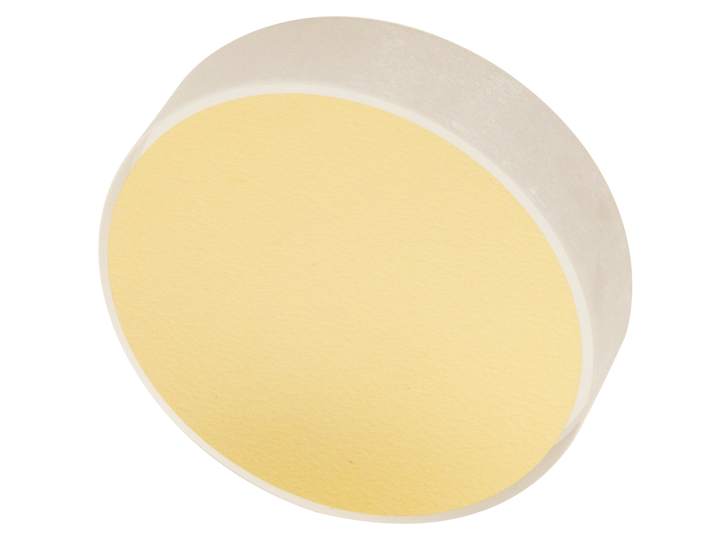

Protected Gold NIR-IR Coating

Our ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. Average reflectivity is greater than 96% from 650 – 1700 nm and greater than 98% from 1.7 – 2.0 µm.
