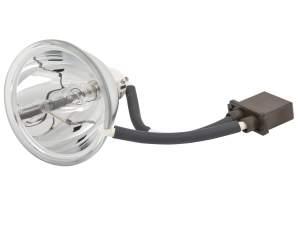

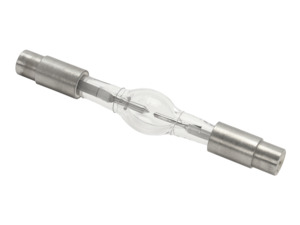

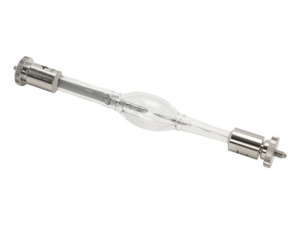

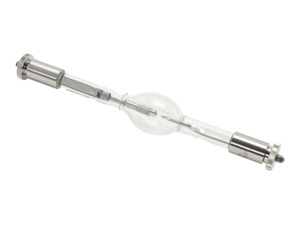

Xenon (Xe) Arc Lamps
Xenon (Xe) Arc Lamps
Xenon (Xe) arc lamps have a relatively smooth emission curve in the UV to visible spectrums, with characteristic wavelengths emitted from 750-1000 nm. Their sun-like emission spectrum and ~5800 K color temperature make them a popular choice for solar simulation, as well as absorption and fluorescence and source spectral scanning applications.
- Relatively Smooth Emission Curve in the UV to Visible
- Ozone Free, UV Enhanced, and High Stability Versions
- Sun-like Emission Spectrum See All Features
Compatibility
We offer complete light source systems as well as components for you to easily build your own systems.
When used with a Q Series lamp housing, the system will need the following components:
- Lamp

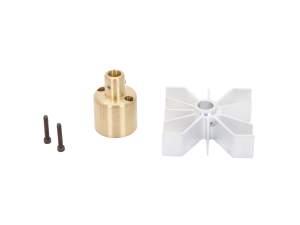

- Lamp Socket Adapter
- Lamp Housing
- Condensing Lens Assembly
- Rear Reflector
- Interface Kit

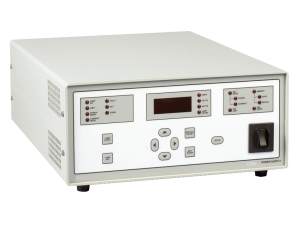

- Power Supply and appropriate cables
| Lamp Housing | Lamp Model | Lamp Socket Adapter | Condensing Lens Assembly Options | Rear Reflector | Interface Kit | Power Supply | Cable | Complete System |
|---|---|---|---|---|---|---|---|---|
| Low Power Q Series Xe | ||||||||

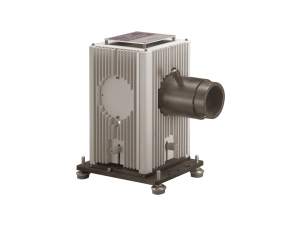

When used with a Research Series lamp housing, the system will need the following components:
- Lamp
- Lamp Socket Adapter
- Lamp Housing (includes rear reflector and condensing lens assembly)
- Power Supply and appropriate cables
| Lamp Housing Options | Lamp Model | Lamp Socket Adapter | Power Supply | Cable | Complete System |
|---|---|---|---|---|---|
|
50-500 W |
Low Power Xe | ||||
| - | |||||
| Medium Power Xe | |||||
|
450-1000 W |
High Power Xe | ||||
| *70052 cable set is included in 69921 and 69923 housing. | |||||
Features
Ozone Free Xenon Lamps
UV wavelength emissions below ~260 nm create toxic ozone. Ideally, an arc lamp is operated outdoors or in a room with adequate ventilation to protect the user from ozone created. If this is not possible, an Ozone Eater should be used. However, if the application does not require wavelength emission below ~260 nm from the arc lamp, using an ozone free lamp is a convenient option. An ozone free lamp is coated to remove the unwanted UV Wavelengths
UV-Enhanced Xenon Lamps
When additional UV output from the xenon lamp is required, UV-enhanced lamps are available. These lamps provide the same visible to NIR performance of an standard Xe arc lamp while providing high intensity UV output as well.
High Stability Xenon Lamps
High stability Xe arc lamps are made of a higher quality cathode than typically used for xenon arc lamp construction. As a result, no arc wander occurs, allowing the lamp to maintain a consistent output intensity throughout its lifetime.
Xenon Lamp Shelf Life
We recommend purchasing replacement xenon lamps only as needed. Xe arc lamps do have an unspecified shelf life, which over time can cause the end cap seals to leak and degrade lamp performance. Newport strives to keep Xe bulbs in stock to reduce lead times when ordering a replacement.

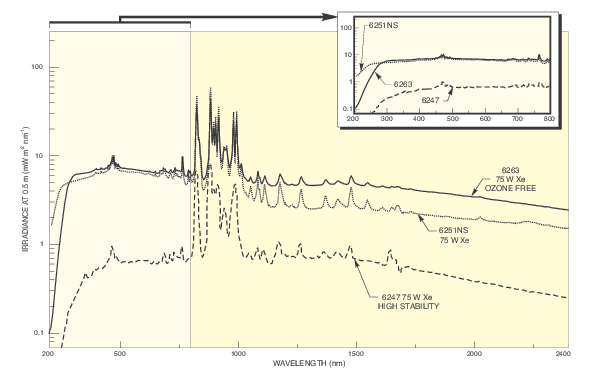

75 W Xenon (Xe) Lamp Spectral Irradiance

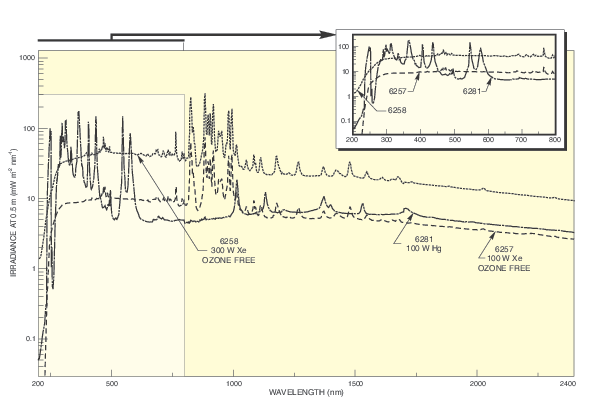

100 W and 300 W Ozone Free Xenon Lamps
150 W Xenon (Xe) Lamps

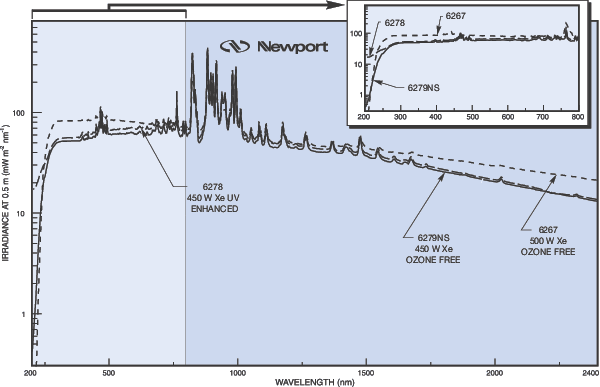

450 to 500 W Xenon (Xe) Lamps

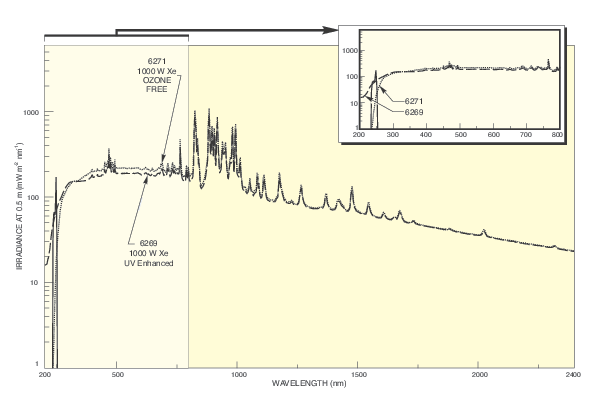

1000 W Xenon (Xe) Lamps

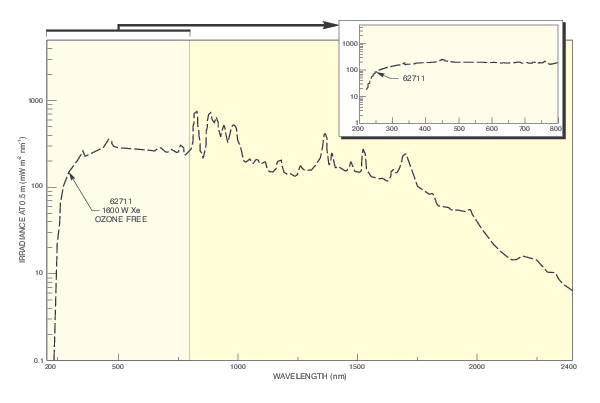

1600 W Ozone Free Xe Lamp
Arc Lamp Safety
Arc lamps may emit dangerous levels of UV radiation depending on their source type. Ensure that only authorized personnel are in the vicinity of the source, and wearing the necessary safety equipment such as UV protective eyewear, clothing, and gloves. Lighted UV warning signs, posted outside laboratory doors where UV sources are operating, can prevent accidental exposure. Newport also recommends using an electronic shutter to block the beam when the source is not in use but remains turned on. Alternatively, the beam can be safely contained by using beam tubes or fiber optic cables to deliver the light to a sample. It is recommended to vent the ozone that is produced by some lamp models to the outside or use the
Accessories
UV Safety Equipment
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 49123UV Protective Gloves, Size 8, Black Neoprene, Set of 3 | In Stock | ||||
| 49121Ultraviolet Protective Gloves, Size 10, Black Neoprene, Set of 3 | In Stock | ||||
 | 49126Safety Goggles, UV Light Sources, Flexible Frame | In Stock | ||||
 | 66087Ozone Eater™, 110/220 VAC, 50/60 Hz | In Stock |
Resources
MKS EU ROHS3 - Xenon Arc Lamps(188.1 kB, PDF)
