V-Block Cylindrical Device Mounts

V-Blocks that are ideal for securing cylindrical devices such as beam shapers, beam expanders, laser tubes, laser diode modules, and fiber collimators.

Cost effective mounting of cylindrical devices
Mounts directly to tip/tilt or translation stages
Holds 6.0 to 76.2 mm diameter cylindrical packages

See All Features

Show Filters:

Showing 3 of 3 total products

Compatibility:

Description	Compatibility	Type	Diameter	Adjustment Type	Avail.	Price
VB-0.5Cylindrical Device Mount, V-Block, 0.5 in. Length	UNIVERSAL	12.7 mm V-Block Mount	6-19 mm	Fixed	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$69
VB-1Cylindrical Device Mount, V-Block, 3 inch (76.2 mm) Length	UNIVERSAL	76.2 mm V-Block Mount	8.9-50.8 mm	Fixed	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$50

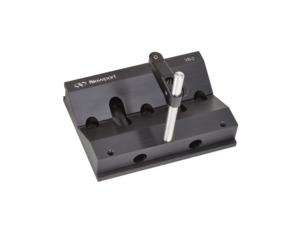

VB-2Cylindrical Device Mount, V-Block, 5 in. Length	UNIVERSAL	127 mm V-Block Mount	12.7-76.2 mm	Fixed	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$135

Features

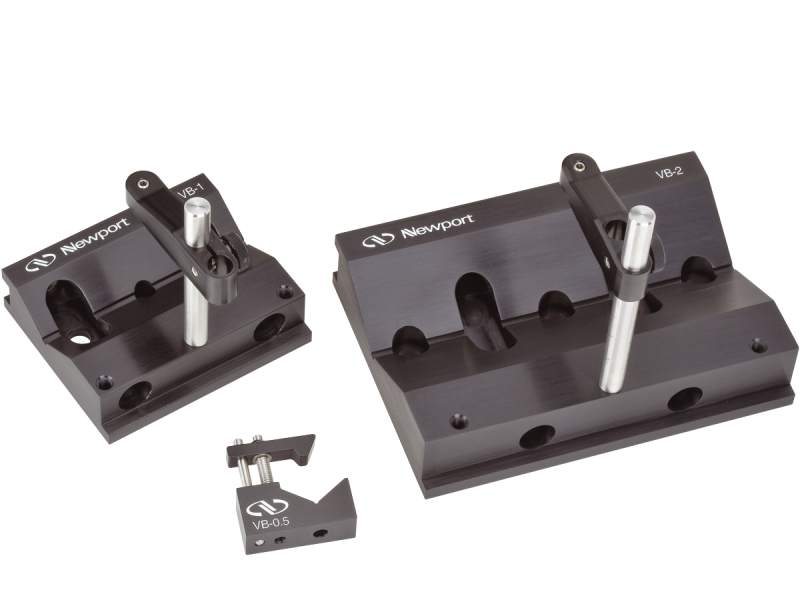

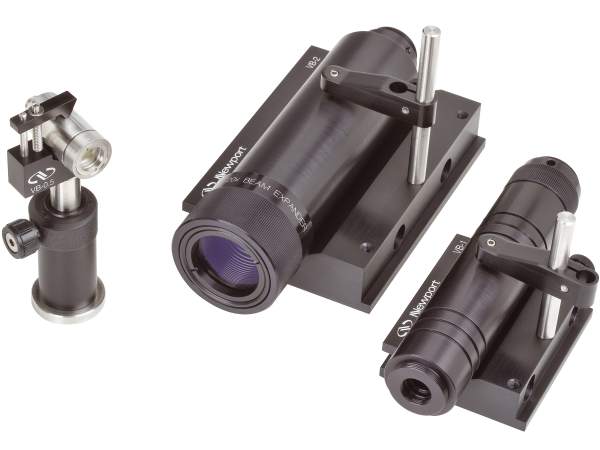

Secure Mounting of Cylindrical Devices

The three different size mounts enables an ideal choice for your device’s diameter and length.

V-Blocks for Larger Devices

The VB-1 and VB-2 are designed to hold larger objects. Each block comes with one clamping arm that can be removed and repositioned by accessing one of the threaded holes along the base. Additional VB-1C and VB-2C clamping arms are sold separately. These two blocks are designed to offer a variety of mounting options. Accessing the counterbored 1/4-20 (M6) holes, they can be attached directly to tables, tip/tilt stages, translation stages or post mounted. There are also holes along the side of the base for direct mounting to 340-RC and 370-RC Rod Clamps.

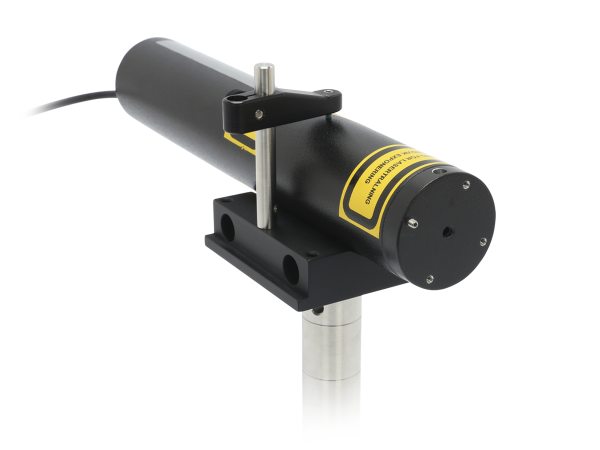

Post Mounted V-Block

The V-Block Cylindrical Device Mounts feature either 8-32 (M4) for VB-0.5 or 1/4-20 (M6) for VB-1 and VB-2 thru-holes at the bottom and include a clamping post which make them suitable for post mounting for various devices including large lasers.

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

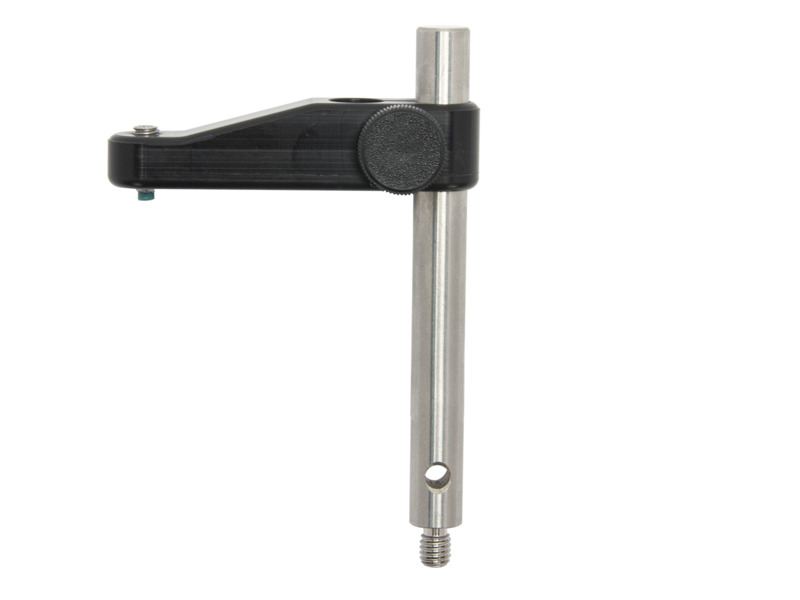

		VB-2CClamping Post, Spare, VB-2	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$43

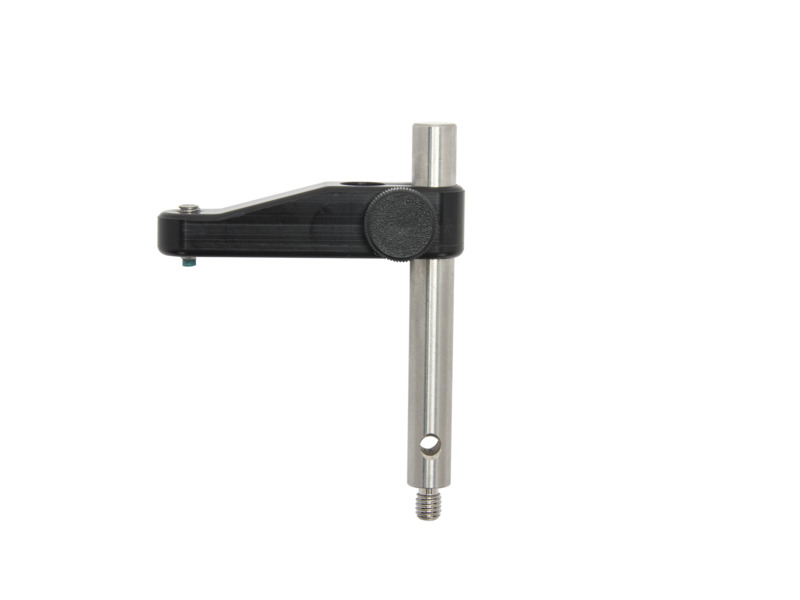

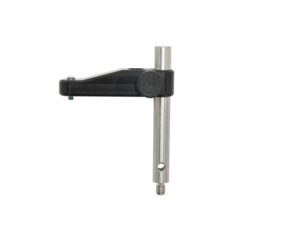

		VB-1CClamping Post, Spare, VB-1 V-Block Mount	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$39
