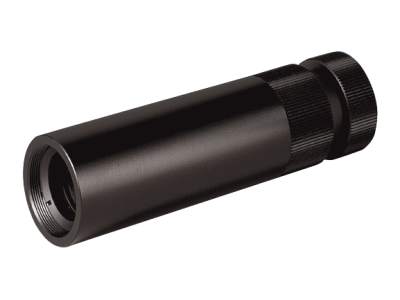

Laser Collimator

Our 10x laser collimator is optimized specifically for low wavefront distortion and diffraction limited performance at infinity focus in the visible wavelength region. The Galilean optical system is antireflection coated with visible MgF₂ for maximum transmission.

10x beam expansion
Diffraction limited performance
Low wavefront distortion
AR coated Galilean optical system
Optimized for the visible spectrum

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Magnification	Wavelength Range	Entrance Aperture	Exit Aperture	Damage Threshold	Avail.	Price
		LC-075Laser Collimator, 10x, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity	UNIVERSAL		10x	400-700 nm	1.9 mm	19.0 mm	100 W/cm² CW, 2 J/cm² with 10 nsec pulses, typical	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,427

Specifications

Magnification
10x
Wavelength Range
400-700 nm
Entrance Aperture
1.9 mm
Exit Aperture
19.0 mm

Damage Threshold
100 W/cm² CW, 2 J/cm² with 10 nsec pulses, typical
Focus Range
<1 m to ∞
Transmission
>90%
Wavefront Distortion
≤λ/10 at infinity focus

Features

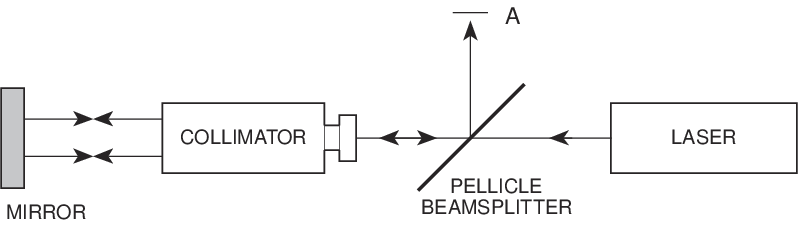

Collimating a Laser Beam

A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.

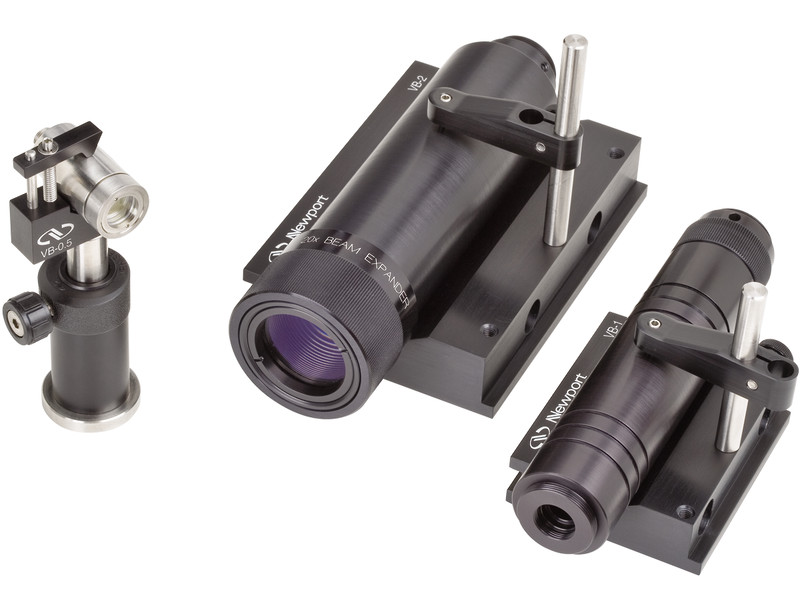

Mounting a Laser Collimator

The adjustable cylindrical device mount is excellent for mounting and positioning the LC-075 in any laser beam. You can also use our kinematic v-groove mount for mounting to an optical post or fixed v-groove mount for mounting to an optical pedestal or directly on the optical table.

Laser Collimator

Laser Collimator

Specifications

Features

Collimating a Laser Beam

Mounting a Laser Collimator
