Compare Model Drawings, CAD & Specs Availability Price
LC-075
Laser Collimator, 10x, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity
$1,358
In Stock

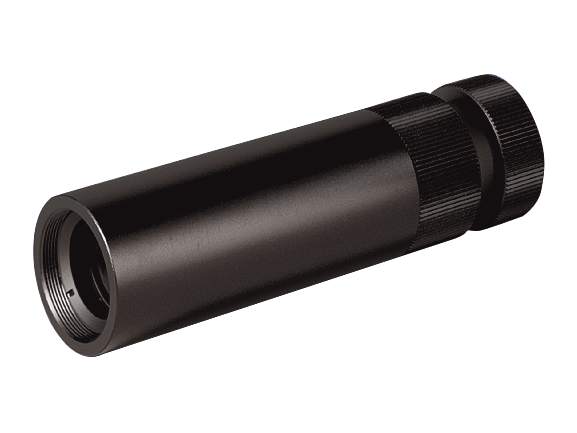

 LC-075 Laser Collimator, 10x, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity
In Stock
 $1,358

Specifications

  • Magnification
    10x
  • Wavelength Range
    400-700 nm
  • Entrance Aperture
    1.9 mm
  • Exit Aperture
    19.0 mm
  • Damage Threshold
    100 W/cm2 CW, 2 J/cm2 with 10 nsec pulses, typical
  • Focus Range
    <1 m to ∞
  • Transmission
    >90%
  • Wavefront Distortion
    ≤λ/10 at infinity focus

Features

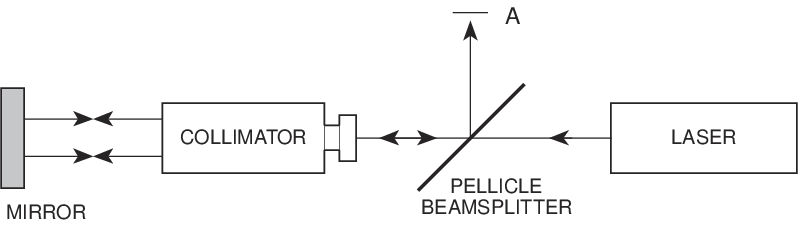

Collimating a Laser Beam

A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.

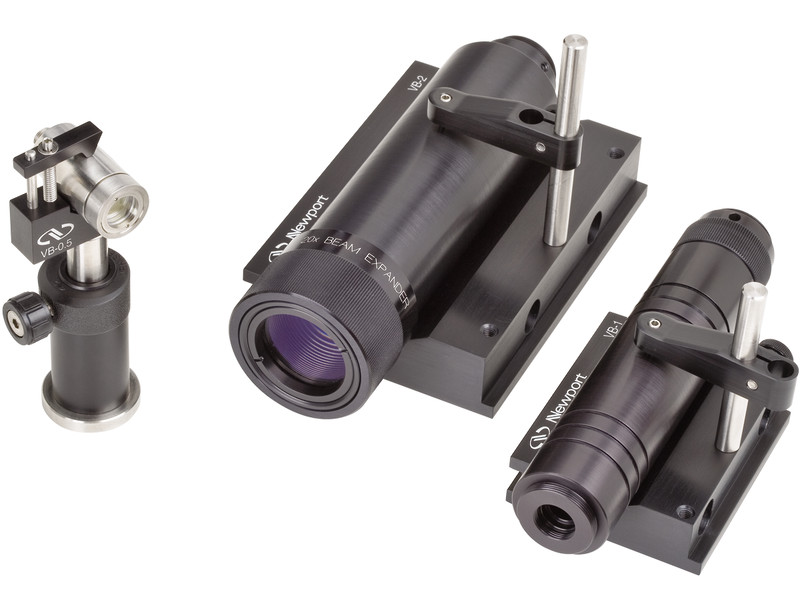

Mounting a Laser Collimator

The ULM-TILT adjustable cylindrical device mount is excellent for mounting and positioning the LC-075 in any laser beam. You can also use our M1-VG kinematic v-groove mount for mounting to an optical post or VB-1 fixed v-groove mount for mounting to an optical pedestal or directly on the optical table.
